SKU: NJ2306ECP-SKF

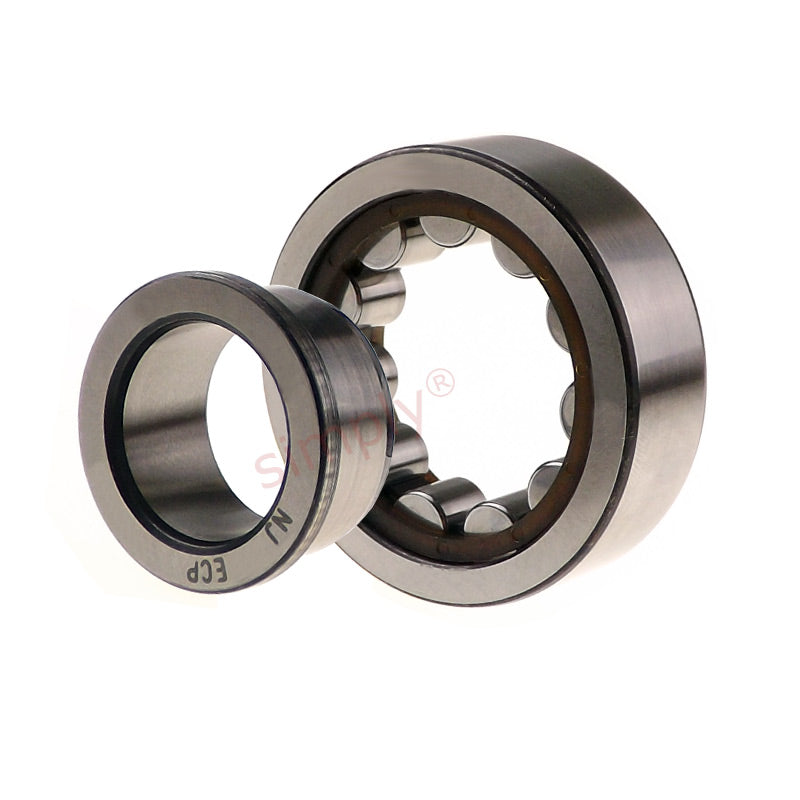

SKF NJ2306ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 30x72x27mm
SKF NJ2306ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 30x72x27mm
Regular price
$82.35
ex VAT
Regular price
Sale price
$82.35
ex VAT
In stock
Price Break
10+
$73.29
19+
$69.17
29+
$68.35
39+
$67.53
49+
$66.70
74+
$65.88
99+
$61.76
199+
$60.94
249+
$60.12
499+
$59.29
999+
$57.65
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 72mm
- Width:
- 27mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 30mm |
|---|---|
| D | 72mm |
| B | 27mm |
| Dynamic load C | 83 kN |
| Static load Co | 75 kN |
| Fatigue load limit Pu | 9.65 kN |
| Reference speed | 11000 rpm |
| Limiting speed | 12000 rpm |
| Weight | 0.54 kg |
| Alt cage | ML |
| d1 | 45mm |
| D1 | 58.9mm |
| F,E | 40.5mm |
| r1r2 min | 1.1mm |
| r3r4 min | 1.1mm |
| S | 2.4mm |
| da min | 37mm |
| da max | 39mm |
| db | 47mm |
| Da max | 65mm |
| ra max | 1mm |
| rb max | 1mm |
| kr | 0.25 |
