SKU: NJ2320ECJ/C3-SKF

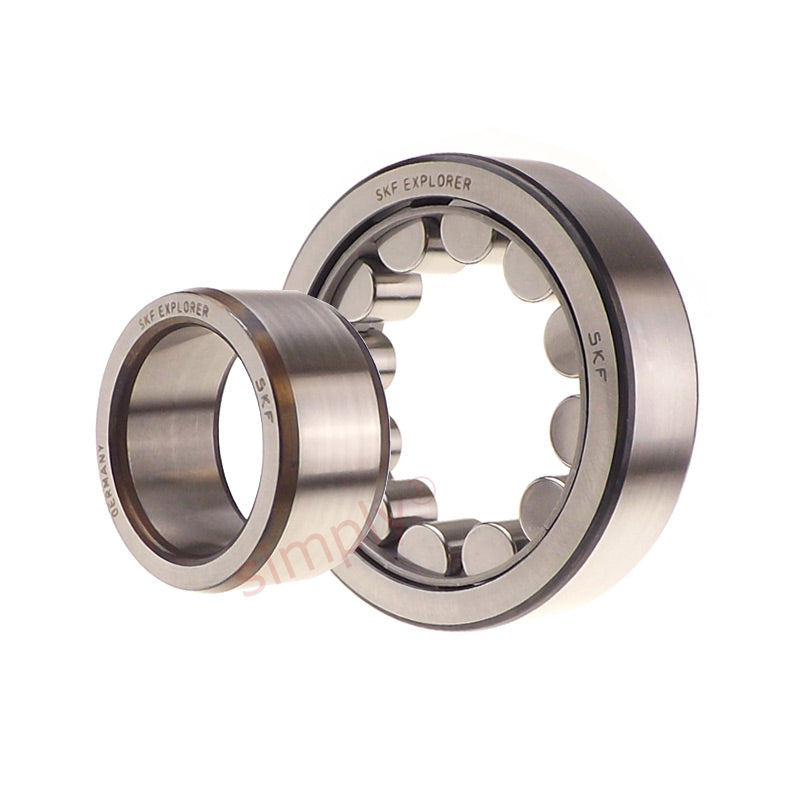

SKF NJ2320ECJC3 Single Row Cylindrical Roller Bearing with Steel Cage 100x215x73mm
SKF NJ2320ECJC3 Single Row Cylindrical Roller Bearing with Steel Cage 100x215x73mm
Regular price
$1,014.69
ex VAT
Regular price
Sale price
$1,014.69
ex VAT
In stock
Price Break
10+
$903.07
19+
$852.34
29+
$842.19
39+
$832.05
49+
$821.90
74+
$811.75
99+
$761.02
199+
$750.87
249+
$740.72
499+
$730.58
999+
$710.28
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 215mm
- Width:
- 73mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 100mm |
|---|---|
| D | 215mm |
| B | 73mm |
| Dynamic load C | 670 kN |
| Static load Co | 735 kN |
| Fatigue load limit Pu | 85 kN |
| Reference speed | 3200 rpm |
| Limiting speed | 3800 rpm |
| Weight | 12.2 kg |
| Alt cage | J.ML |
| d1 | 139mm |
| D1 | 182mm |
| F,E | 127.5mm |
| r1r2 min | 3mm |
| r3r4 min | 3mm |
| S | 5.9mm |
| da min | 114mm |
| da max | 124mm |
| db | 142mm |
| Da max | 201mm |
| ra max | 2.5mm |
| rb max | 2.5mm |
| kr | 0.25 |
| Angle ring | HJ2320EC |
| Angle ring weight | 0.93 kg |
| B1 | 13mm |
| B2 | 23.5mm |
