SKU: NJ240ECMA-EU

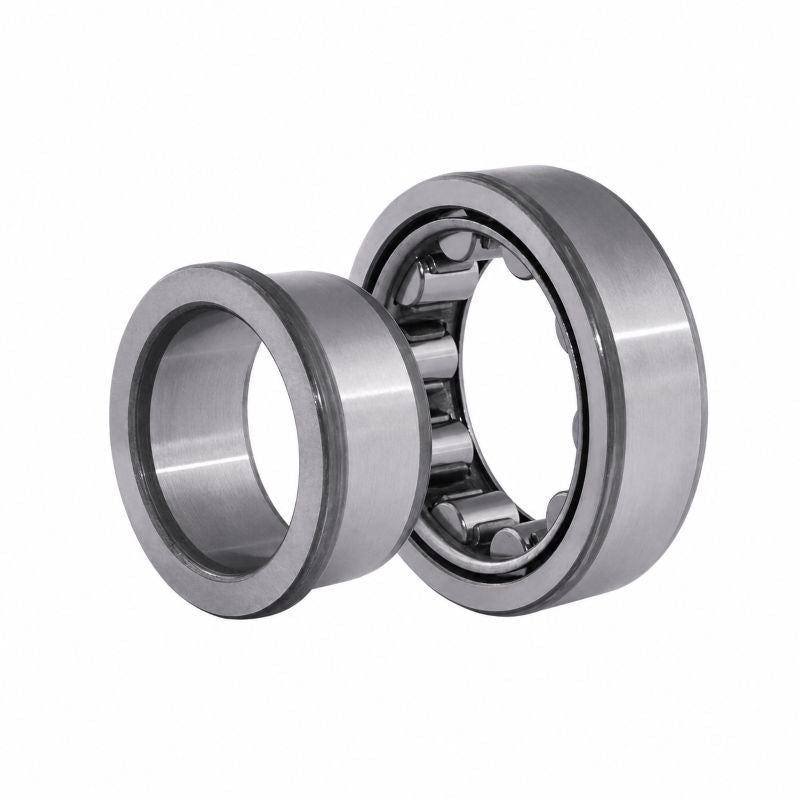

NJ240 Budget Single Row Cylindrical Roller Bearing 200x360x58mm
NJ240 Budget Single Row Cylindrical Roller Bearing 200x360x58mm
Regular price
$1,724.65
ex VAT
Regular price
Sale price
$1,724.65
ex VAT
In stock
Price Break
10+
$1,534.94
19+
$1,448.71
29+
$1,431.46
39+
$1,414.21
49+
$1,396.97
74+
$1,379.72
99+
$1,293.49
199+
$1,276.24
249+
$1,258.99
499+
$1,241.75
999+
$1,207.26
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 200mm
- Outside Diameter:
- 360mm
- Width:
- 58mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 200mm |
|---|---|
| D | 360mm |
| B | 58mm |
| Dynamic load C | 850 kN |
| Static load Co | 1020 kN |
| Fatigue load limit Pu | 100 kN |
| Reference speed | 1900 rpm |
| Limiting speed | 2800 rpm |
| Weight | 29 kg |
| Cage options | M |
| d1 | 258mm |
| D1 | 312mm |
| F, E | 243mm |
| r1r2 min | 4mm |
| r3r4 min | 4mm |
| s | 2.6mm |
| da min | 217mm |
| da max | 239mm |
| db min | 262mm |
| Da max | 343mm |
| ra max | 3mm |
| rb max | 3mm |
| kr | 0.15 |
| Angle ring | HJ240EC |
| Angle ring weight | 2.55kg |
| B1 | 14mm |
| B2 | 23mm |
