SKU: NJ240ECML-SKF

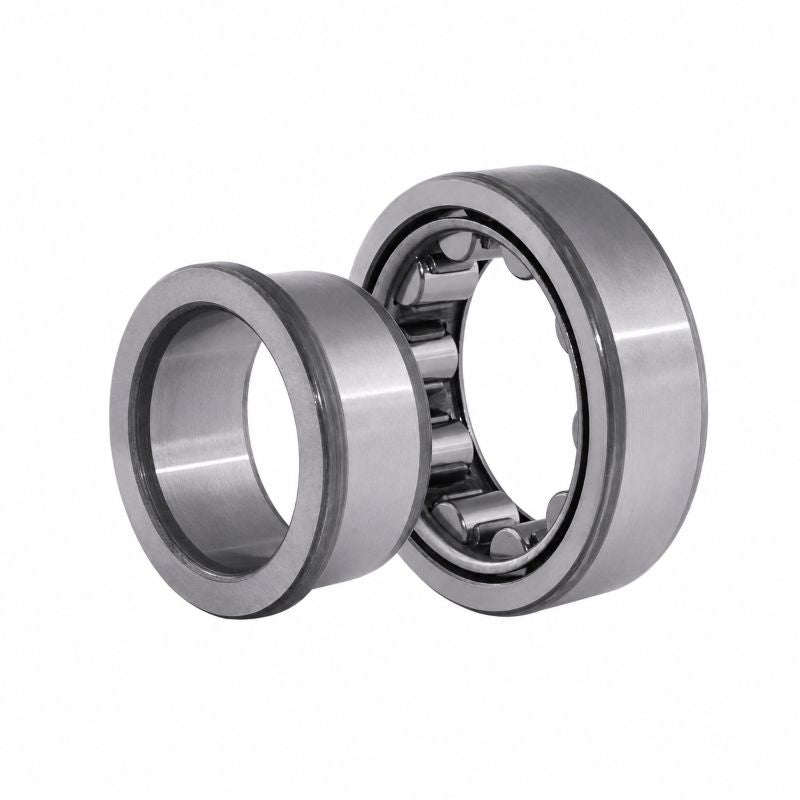

SKF NJ240ECML Single Row Cylindrical Roller Bearing with Brass Cage 200x360x58mm
SKF NJ240ECML Single Row Cylindrical Roller Bearing with Brass Cage 200x360x58mm
Regular price
$2,003.03
ex VAT
Regular price
Sale price
$2,003.03
ex VAT
In stock
Price Break
10+
$1,782.70
19+
$1,682.55
29+
$1,662.51
39+
$1,642.48
49+
$1,622.45
74+
$1,602.42
99+
$1,502.27
199+
$1,482.24
249+
$1,462.21
499+
$1,442.18
999+
$1,402.12
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 200mm
- Outside Diameter:
- 360mm
- Width:
- 58mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 200mm |
|---|---|
| D | 360mm |
| B | 58mm |
| Dynamic load C | 850 kN |
| Static load Co | 1020 kN |
| Fatigue load limit Pu | 100 kN |
| Reference speed | 1900 rpm |
| Limiting speed | 2800 rpm |
| Weight | 29 kg |
| Alt cage | M |
| d1 | 258mm |
| D1 | 312mm |
| F,E | 243mm |
| r1r2 min | 4mm |
| r3r4 min | 4mm |
| S | 2.6mm |
| da min | 217mm |
| da max | 239mm |
| db | 262mm |
| Da max | 343mm |
| ra max | 3mm |
| rb max | 3mm |
| kr | 0.15 |
| Angle ring | HJ240EC |
| Angle Ring Weight | 2.55 kg |
| B1 | 14mm |
| B2 | 23mm |
