SKU: NJ313-CDX

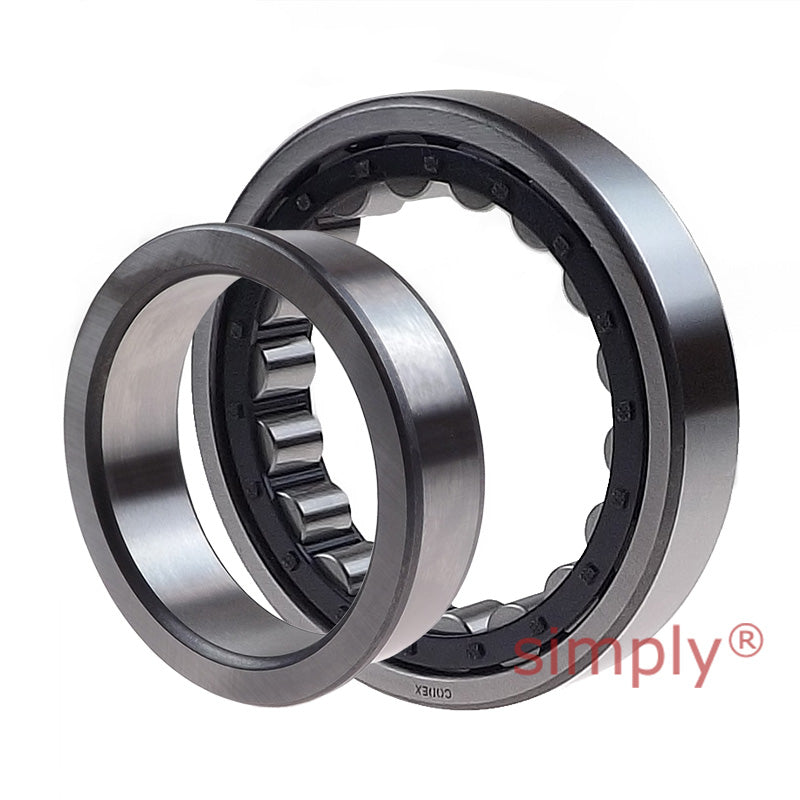

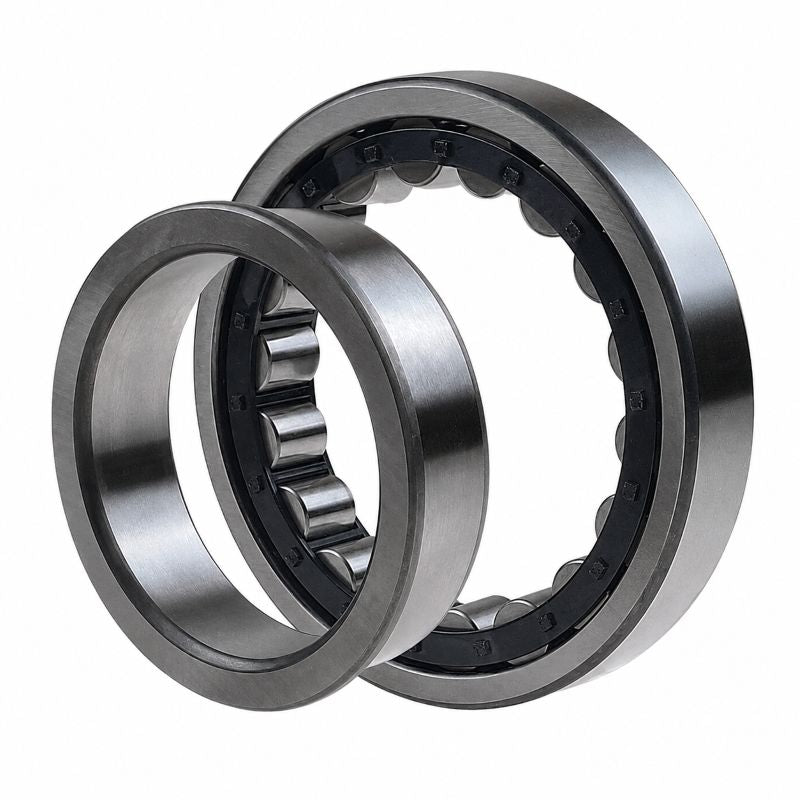

Codex NJ313 Single Row Cylindrical Roller Bearing 65x140x33mm
Codex NJ313 Single Row Cylindrical Roller Bearing 65x140x33mm
Regular price
$151.33
ex VAT
Regular price
Sale price
$151.33
ex VAT
In stock
Price Break
10+
$134.68
19+
$127.12
29+
$125.60
39+
$124.09
49+
$122.58
74+
$121.06
99+
$113.50
199+
$111.98
249+
$110.47
499+
$108.96
999+
$105.93
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 140mm
- Width:
- 33mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 65mm |
|---|---|
| D | 140mm |
| B | 33mm |
| Dynamic load C | 212 kN |
| Static load Co | 196 kN |
| Fatigue load limit Pu | 25.5 kN |
| Reference speed | 5300 rpm |
| Limiting speed | 6000 rpm |
| Weight | 2.3 kg |
| Cage options | J.M.ML |
| d1 | 90.5mm |
| D1 | 119mm |
| F, E | 82.5mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| s | 2.2mm |
| da min | 77mm |
| da max | 80mm |
| db min | 93mm |
| Da max | 128mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
| Angle ring | HJ313EC |
| Angle ring weight | 0.27kg |
| B1 | 10mm |
| B2 | 15.5mm |
