SKU: NJ317ECP-SKF

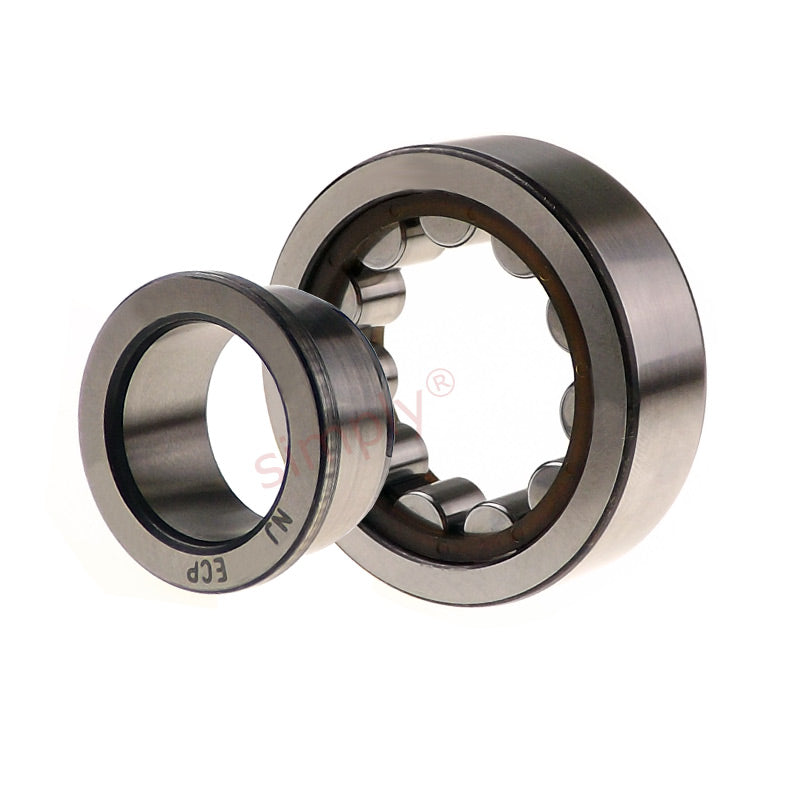

SKF NJ317ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 85x180x41mm
SKF NJ317ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 85x180x41mm
Regular price
$366.76
ex VAT
Regular price
Sale price
$366.76
ex VAT
In stock
Price Break
10+
$326.42
19+
$308.08
29+
$304.41
39+
$300.74
49+
$297.08
74+
$293.41
99+
$275.07
199+
$271.40
249+
$267.73
499+
$264.07
999+
$256.73
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 180mm
- Width:
- 41mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 85mm |
|---|---|
| D | 180mm |
| B | 41mm |
| Dynamic load C | 340 kN |
| Static load Co | 335 kN |
| Fatigue load limit Pu | 41.5 kN |
| Reference speed | 4000 rpm |
| Limiting speed | 4800 rpm |
| Weight | 4.75 kg |
| Alt cage | J.M |
| d1 | 117mm |
| D1 | 153mm |
| F,E | 108mm |
| r1r2 min | 3mm |
| r3r4 min | 3mm |
| S | 2.3mm |
| da min | 99mm |
| da max | 105mm |
| db | 120mm |
| Da max | 166mm |
| ra max | 2.5mm |
| rb max | 2.5mm |
| kr | 0.15 |
| Angle ring | HJ317EC |
| Angle Ring Weight | 0.55 kg |
| B1 | 12mm |
| B2 | 18.5mm |
