SKU: NJ324ECJ-SKF

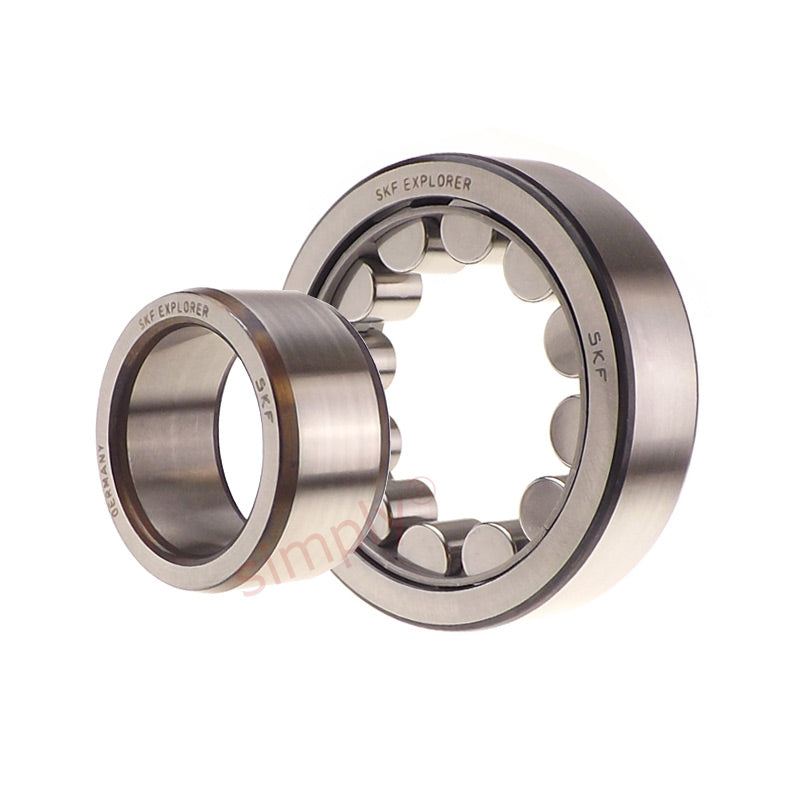

SKF NJ324ECJ Single Row Cylindrical Roller Bearing with Pressed Steel Cage 120x260x55mm
SKF NJ324ECJ Single Row Cylindrical Roller Bearing with Pressed Steel Cage 120x260x55mm
Regular price
$944.87
ex VAT
Regular price
Sale price
$944.87
ex VAT
In stock
Price Break
10+
$840.93
19+
$793.69
29+
$784.24
39+
$774.79
49+
$765.34
74+
$755.90
99+
$708.65
199+
$699.20
249+
$689.76
499+
$680.31
999+
$661.41
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 260mm
- Width:
- 55mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 120mm |
|---|---|
| D | 260mm |
| B | 55mm |
| Dynamic load C | 610 kN |
| Static load Co | 620 kN |
| Fatigue load limit Pu | 69.5 kN |
| Reference speed | 2800 rpm |
| Limiting speed | 3200 rpm |
| Weight | 13.3 kg |
| Alt cage | J.M.ML |
| d1 | 168mm |
| D1 | 219mm |
| F,E | 154mm |
| r1r2 min | 3mm |
| r3r4 min | 3mm |
| S | 3.7mm |
| da min | 134mm |
| da max | 150mm |
| db | 171mm |
| Da max | 246mm |
| ra max | 2.5mm |
| rb max | 2.5mm |
| kr | 0.15 |
| Angle ring | HJ324EC |
| Angle Ring Weight | 1.4 kg |
| B1 | 14mm |
| B2 | 22.5mm |
