SKU: NK10/16TN-EU

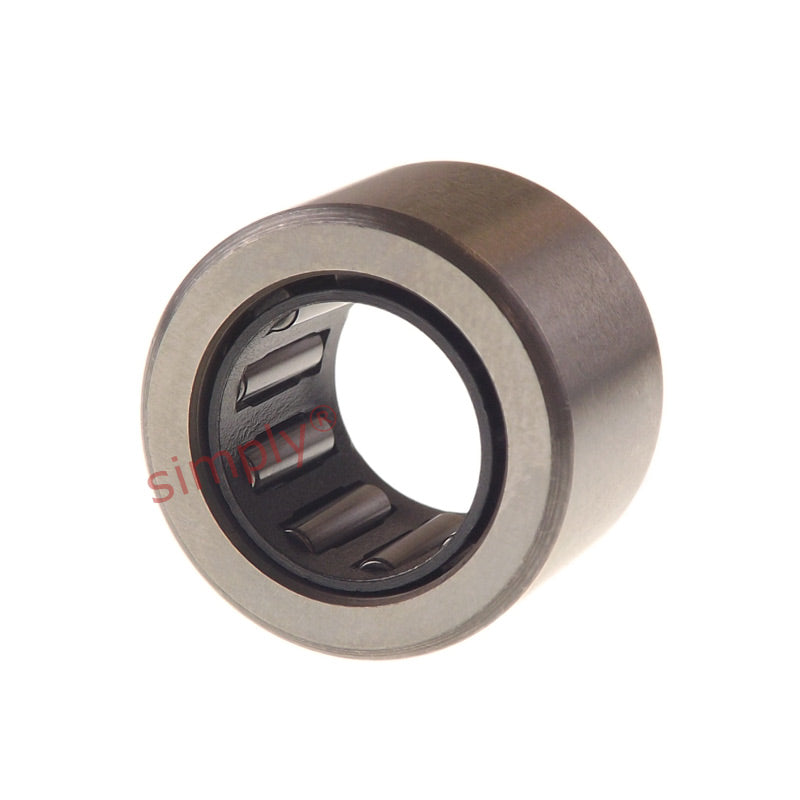

NK10/16TN Budget Needle Roller Bearing with Flanges no Shaft Sleeve 10x17x16mm
NK10/16TN Budget Needle Roller Bearing with Flanges no Shaft Sleeve 10x17x16mm
Regular price
$14.86
ex VAT
Regular price
Sale price
$14.86
ex VAT
In stock
Price Break
10+
$13.23
19+
$12.48
29+
$12.33
39+
$12.19
49+
$12.04
74+
$11.89
99+
$11.15
199+
$11.00
249+
$10.85
499+
$10.70
999+
$10.40
Description
Description
|
Budget Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 17mm
- Width:
- 16mm
Technical
Technical
| Fw | 10mm |
|---|---|
| D | 17mm |
| C | 16mm |
| Dynamic load C | 5940 N |
| Static load Co | 8000 N |
| Fatigue load limit Pu | 900 N |
| Speed in grease | 22000 rpm |
| Speed in oil | 34000 rpm |
| r1r2 | 0.3mm |
| Da max | 15mm |
| ra max | 0.3mm |
| Seal | G/SD10x17x3 |
| Weight | 13 g |
