SKU: NK10/16TN-MB

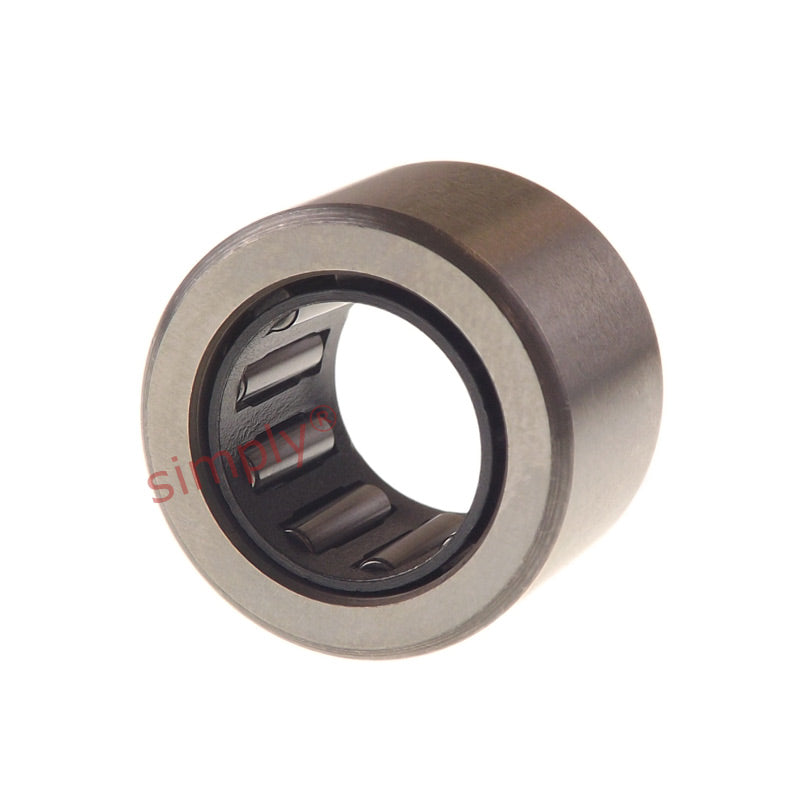

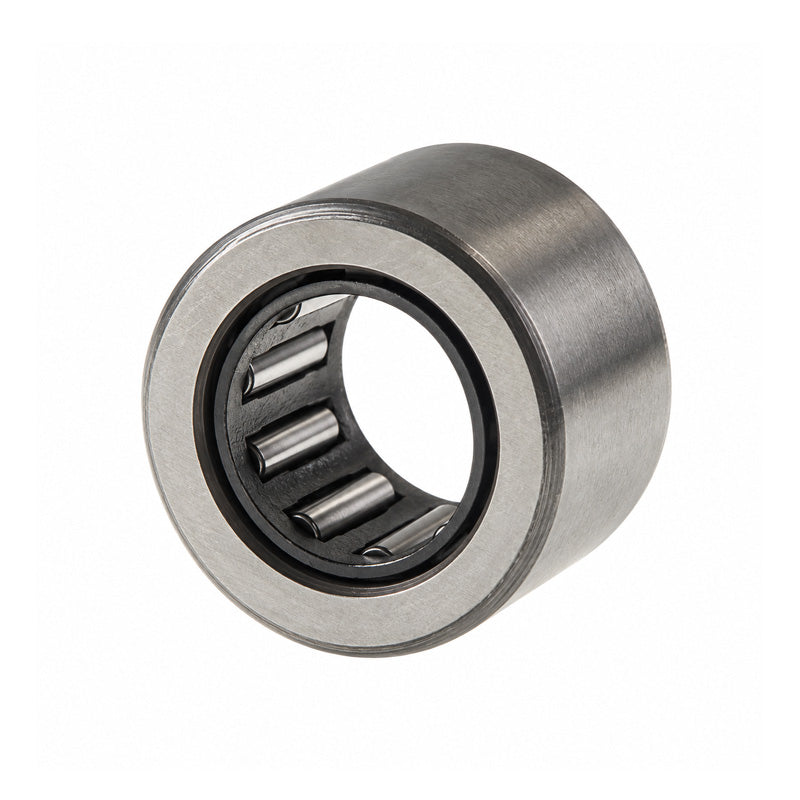

Major Brand NK10/16TN Needle Roller Bearing With Flanges without Shaft Sleeve 10x17x16mm
Major Brand NK10/16TN Needle Roller Bearing With Flanges without Shaft Sleeve 10x17x16mm
Regular price
$12.39
ex VAT
Regular price
Sale price
$12.39
ex VAT
In stock
Price Break
10+
$11.03
19+
$10.41
29+
$10.28
39+
$10.16
49+
$10.04
74+
$9.91
99+
$9.29
199+
$9.17
249+
$9.04
499+
$8.92
999+
$8.67
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 17mm
- Width:
- 16mm
Technical
Technical
| Fw | 10mm |
|---|---|
| D | 17mm |
| C | 16mm |
| Dynamic load | 5940 N |
| Static load | 8000 N |
| Fatigue load limit Pu | 900 N |
| Speed in grease | 22000 rpm |
| Speed in oil | 34000 rpm |
| r1r2 | 0.3mm |
| Da max | 15mm |
| ra max | 0.3mm |
| Seal | G/SD10x17x3 |
| Weight | 13 g |
