SKU: NK15/12-MB

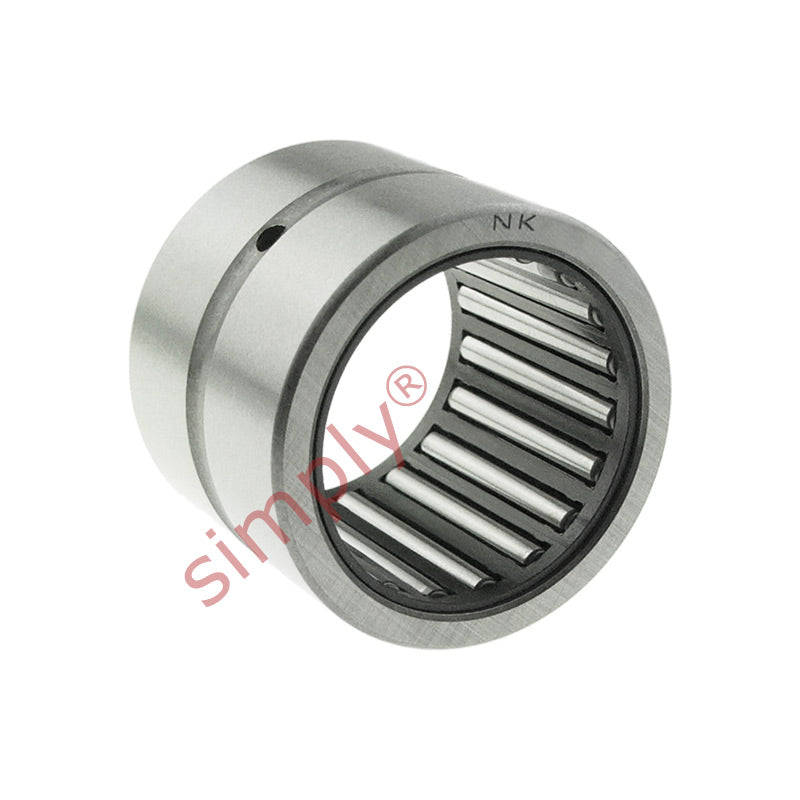

Major Brand NK15/12 Needle Roller Bearing With Flanges without Shaft Sleeve 15x23x12mm
Major Brand NK15/12 Needle Roller Bearing With Flanges without Shaft Sleeve 15x23x12mm
Regular price
$14.12
ex VAT
Regular price
Sale price
$14.12
ex VAT
In stock
Price Break
10+
$12.57
19+
$11.86
29+
$11.72
39+
$11.58
49+
$11.44
74+
$11.30
99+
$10.59
199+
$10.45
249+
$10.31
499+
$10.17
999+
$9.88
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 23mm
- Width:
- 12mm
Technical
Technical

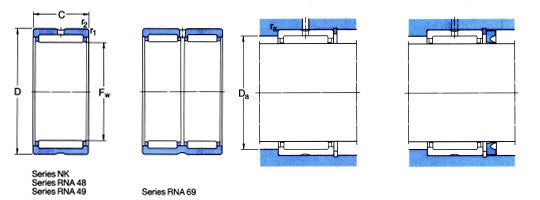

| Fw | 15mm |
|---|---|
| D | 23mm |
| C | 12mm |
| Dynamic load | 8600 N |
| Static load | 10070 N |
| Speed in oil | 21004 rpm |
| Weight | 18.5g |
