SKU: NK24/16-MB

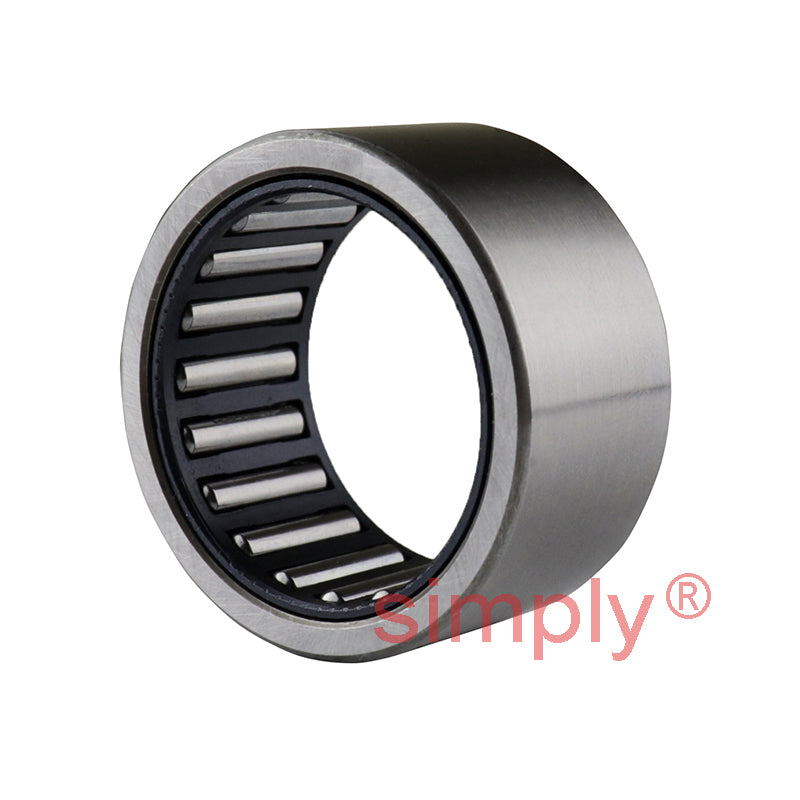

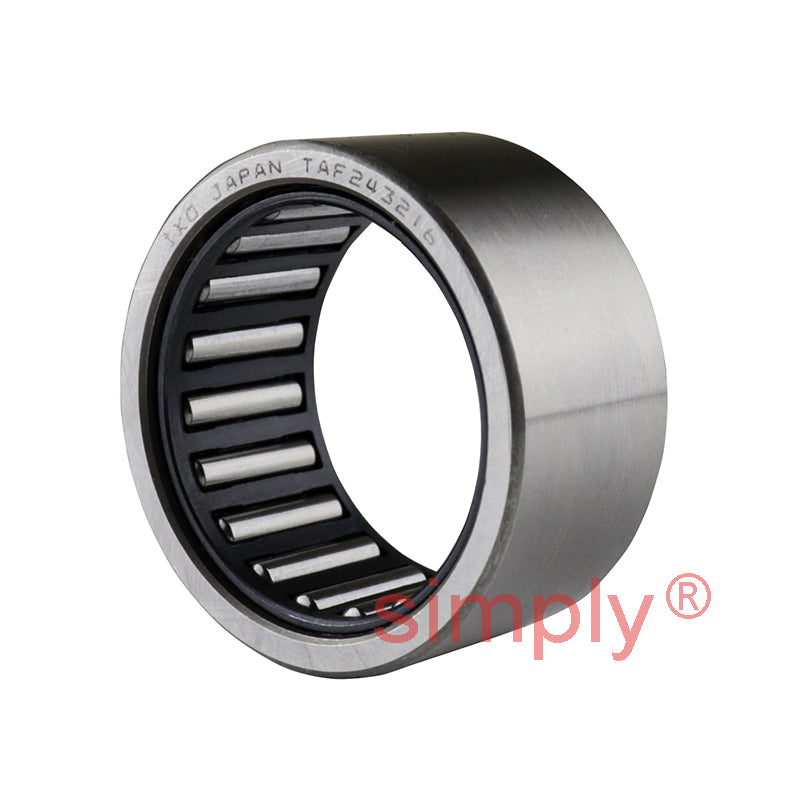

Major Brand NK24/16 Needle Roller Bearing With Flanges without Shaft Sleeve 24x32x16mm
Major Brand NK24/16 Needle Roller Bearing With Flanges without Shaft Sleeve 24x32x16mm
Regular price
$8.99
ex VAT
Regular price
Sale price
$8.99
ex VAT
In stock
Price Break
10+
$8.00
19+
$7.55
29+
$7.46
39+
$7.37
49+
$7.28
74+
$7.19
99+
$6.74
199+
$6.65
249+
$6.56
499+
$6.47
999+
$6.29
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 24mm
- Outside Diameter:
- 32mm
- Width:
- 16mm
Technical
Technical
| Fw | 24mm |
|---|---|
| D | 32mm |
| C | 16mm |
| Dynamic load | 15400 N |
| Static load | 24500 N |
| Fatigue load limit Pu | 3000 N |
| Speed in grease | 10000 rpm |
| Speed in oil | 16000 rpm |
| r1r2 | 0.3mm |
| Da max | 30mm |
| ra max | 0.3mm |
| Seal | G/SD24x32x4 |
| Weight | 32 g |
