SKU: NK8/16TN-MB

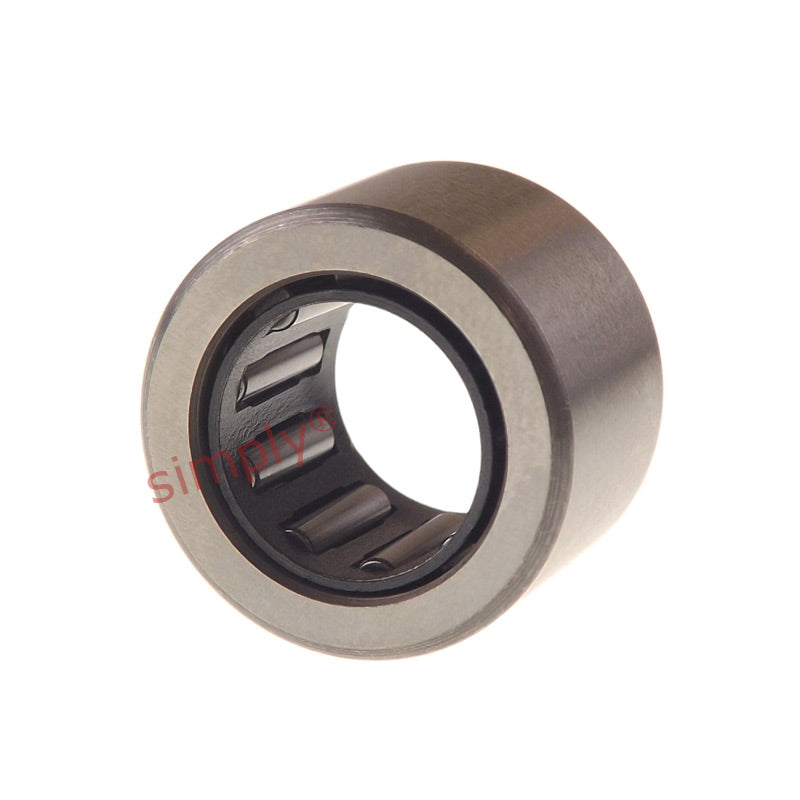

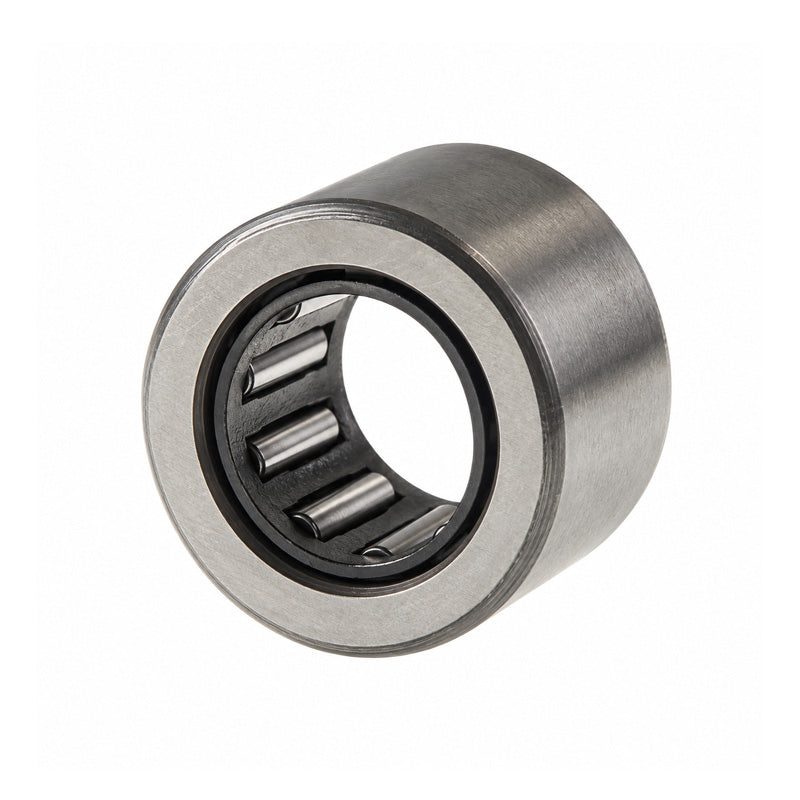

Major Brand NK8/16TN Needle Roller Bearing With Flanges without Shaft Sleeve 8x15x16mm
Major Brand NK8/16TN Needle Roller Bearing With Flanges without Shaft Sleeve 8x15x16mm
Regular price
$12.05
ex VAT
Regular price
Sale price
$12.05
ex VAT
In stock
Price Break
10+
$10.72
19+
$10.12
29+
$10.00
39+
$9.88
49+
$9.76
74+
$9.64
99+
$9.04
199+
$8.92
249+
$8.80
499+
$8.68
999+
$8.44
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 15mm
- Width:
- 16mm
Technical
Technical
| Fw | 8mm |
|---|---|
| D | 15mm |
| C | 16mm |
| Dynamic load | 5010 N |
| Static load | 5850 N |
| Fatigue load limit Pu | 670 N |
| Speed in grease | 28000 rpm |
| Speed in oil | 40000 rpm |
| r1r2 | 0.3mm |
| Da max | 13mm |
| ra max | 0.3mm |
| Seal | G/SD8x15x3 |
| Weight | 12 g |
