SKU: NKI10/20-MB
Major Brand NKI10/20 Needle Roller Bearing With Shaft Sleeve 10x22x20mm
Major Brand NKI10/20 Needle Roller Bearing With Shaft Sleeve 10x22x20mm
Regular price
$12.19
ex VAT
Regular price
Sale price
$12.19
ex VAT
In stock
Price Break
10+
$10.85
19+
$10.24
29+
$10.12
39+
$10.00
49+
$9.87
74+
$9.75
99+
$9.14
199+
$9.02
249+
$8.90
499+
$8.78
999+
$8.53
Description
Description
|

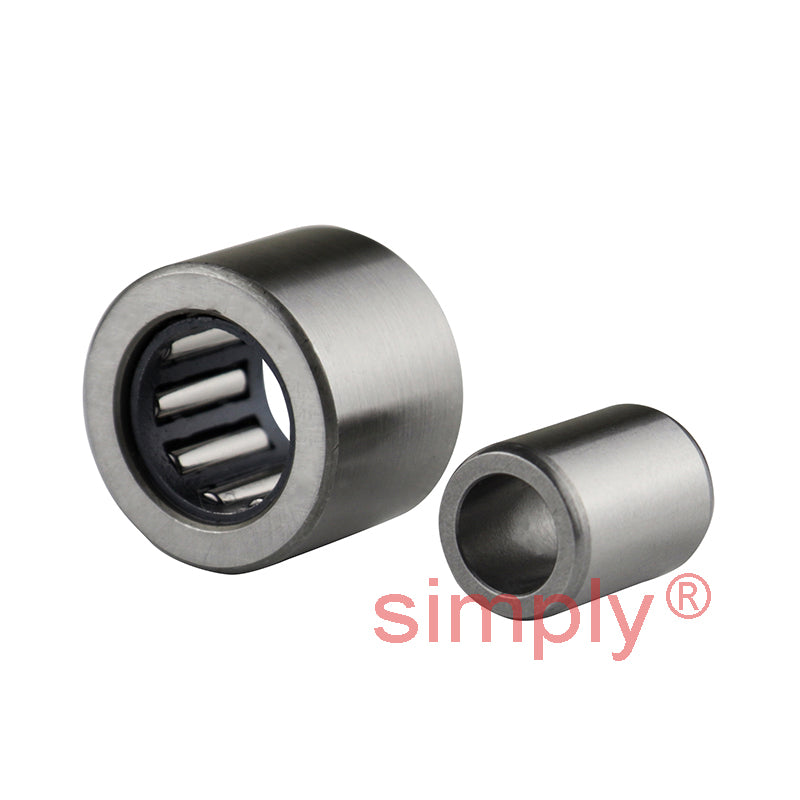

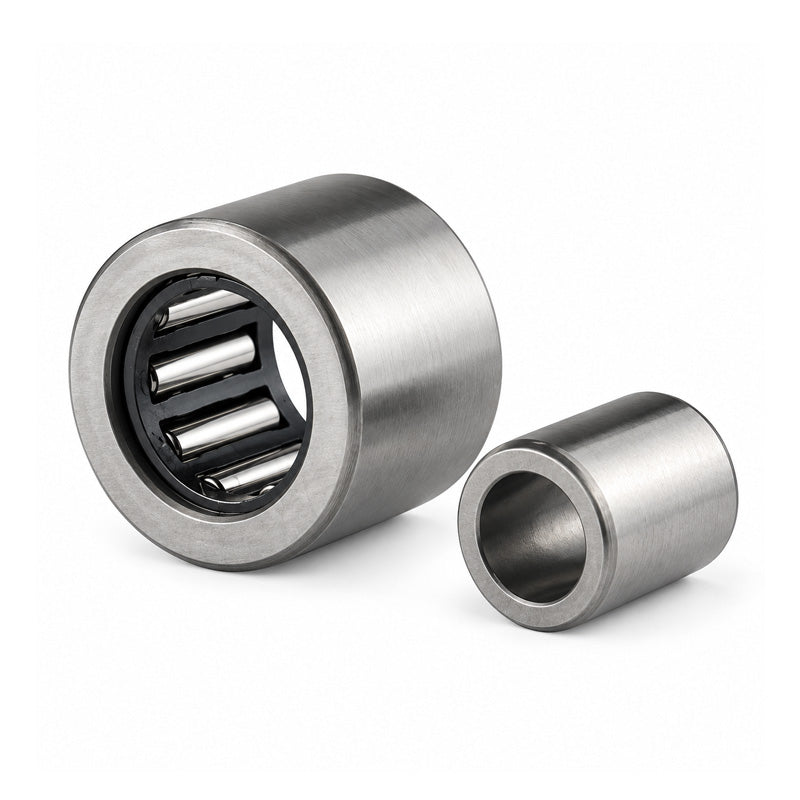

Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 22mm
- Width:
- 20mm
Technical
Technical
| d | 10mm |
|---|---|
| D | 22mm |
| B | 20mm |
| Dynamic load | 12800 N |
| Static load | 16600 N |
| Fatigue load limit Pu | 2080 N |
| Speed in grease | 17000 rpm |
| Speed in oil | 26000 rpm |
| F | 14mm |
| r1r2 | 0.3mm |
| S (axial disp) | 0.5mm |
| da min | 12mm |
| Da max | 20mm |
| ra max | 0.3mm |
