SKU: NKI100/40-EU

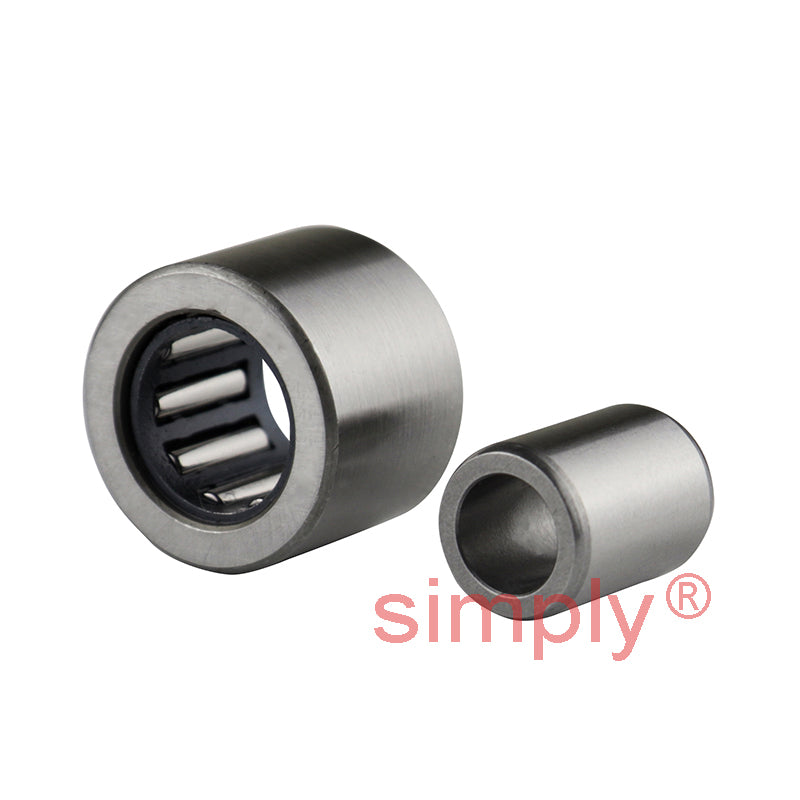

NKI100/40 Budget Needle Roller Bearing / Shaft Sleeve 100x130x40mm
NKI100/40 Budget Needle Roller Bearing / Shaft Sleeve 100x130x40mm
Regular price
$261.80
ex VAT
Regular price
Sale price
$261.80
ex VAT
In stock
Price Break
10+
$233.00
19+
$219.91
29+
$217.29
39+
$214.68
49+
$212.06
74+
$209.44
99+
$196.35
199+
$193.73
249+
$191.11
499+
$188.50
999+
$183.26
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 130mm
- Width:
- 40mm
Technical
Technical
| d | 100mm |
|---|---|
| D | 130mm |
| B | 40mm |
| Dynamic load C | 123000 N |
| Static load Co | 305000 N |
| Fatigue load limit Pu | 38000 N |
| Speed in grease | 2400 rpm |
| Speed in oil | 3600 rpm |
| F | 110mm |
| r1r2 | 1.1mm |
| S (axial disp) | 2mm |
| da min | 106.5mm |
| Da max | 123.5mm |
| ra max | 1mm |
