SKU: NKI30/20TN-MB

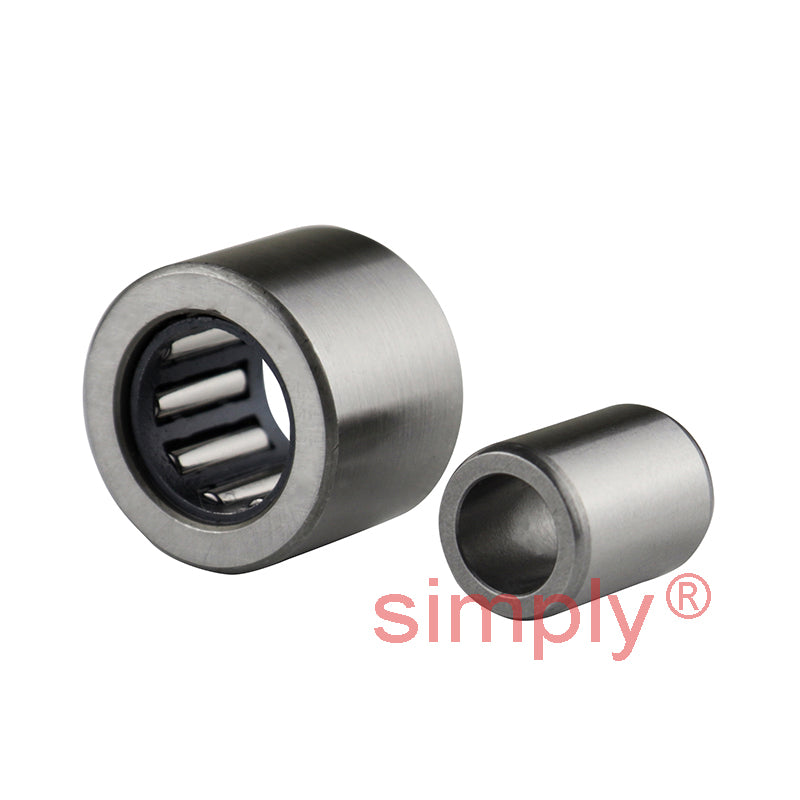

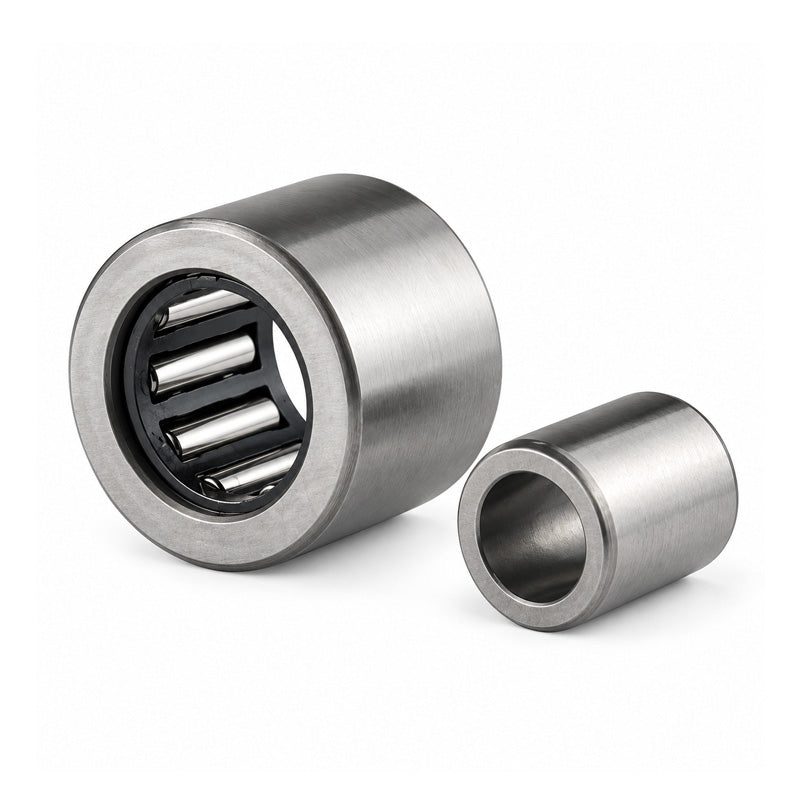

Major Brand NKI30/20TN Needle Roller Bearing With Shaft Sleeve 30x45x20mm
Major Brand NKI30/20TN Needle Roller Bearing With Shaft Sleeve 30x45x20mm
Regular price
$24.86
ex VAT
Regular price
Sale price
$24.86
ex VAT
In stock
Price Break
10+
$22.13
19+
$20.88
29+
$20.63
39+
$20.39
49+
$20.14
74+
$19.89
99+
$18.65
199+
$18.40
249+
$18.15
499+
$17.90
999+
$17.40
Description
Description
|
Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 45mm
- Width:
- 20mm
Technical
Technical
| d | 30mm |
|---|---|
| D | 45mm |
| B | 20mm |
| Dynamic load | 24600 N |
| Static load | 45000 N |
| Fatigue load limit Pu | 5700 N |
| Speed in grease | 7500 rpm |
| Speed in oil | 11000 rpm |
| F | 35mm |
| r1r2 | 0.3mm |
| S (axial disp) | 0.5mm |
| da min | 32mm |
| Da max | 43mm |
| ra max | 0.3mm |
