SKU: NKI5/12TN-MB

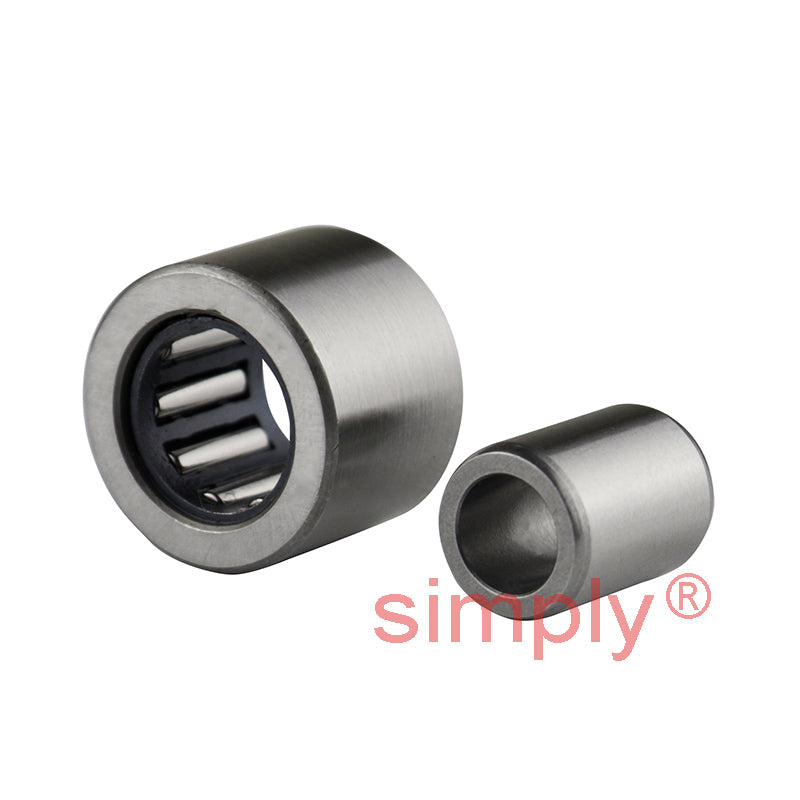

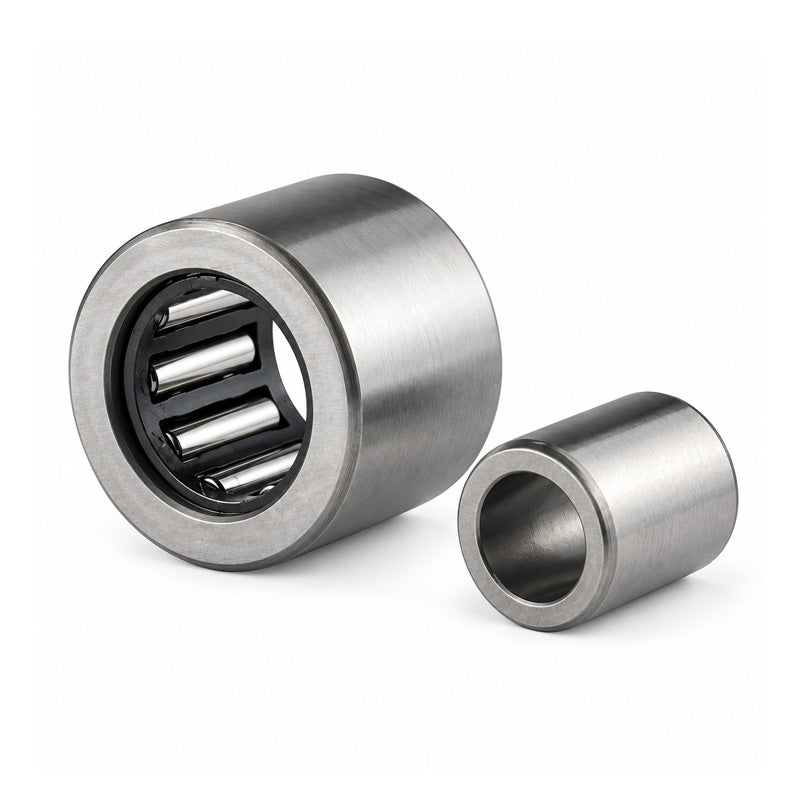

Major Brand NKI5/12TN Needle Roller Bearing With Shaft Sleeve 5x15x12mm
Major Brand NKI5/12TN Needle Roller Bearing With Shaft Sleeve 5x15x12mm
Regular price
$22.02
ex VAT
Regular price
Sale price
$22.02
ex VAT
In stock
Price Break
10+
$19.60
19+
$18.50
29+
$18.28
39+
$18.06
49+
$17.84
74+
$17.62
99+
$16.52
199+
$16.29
249+
$16.07
499+
$15.85
999+
$15.41
Description
Description
|
Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 5mm
- Outside Diameter:
- 15mm
- Width:
- 12mm
Technical
Technical
| d | 5mm |
|---|---|
| D | 15mm |
| B | 12mm |
| Dynamic load | 3800 N |
| Static load | 4250 N |
| Fatigue load limit Pu | 465 N |
| Speed in grease | 28000 rpm |
| Speed in oil | 40000 rpm |
| F | 8mm |
| r1r2 | 0.3mm |
| S (axial disp) | 1.5mm |
| da min | 7mm |
| Da max | 13mm |
| ra max | 0.3mm |
