SKU: NKI5/16TN-EU

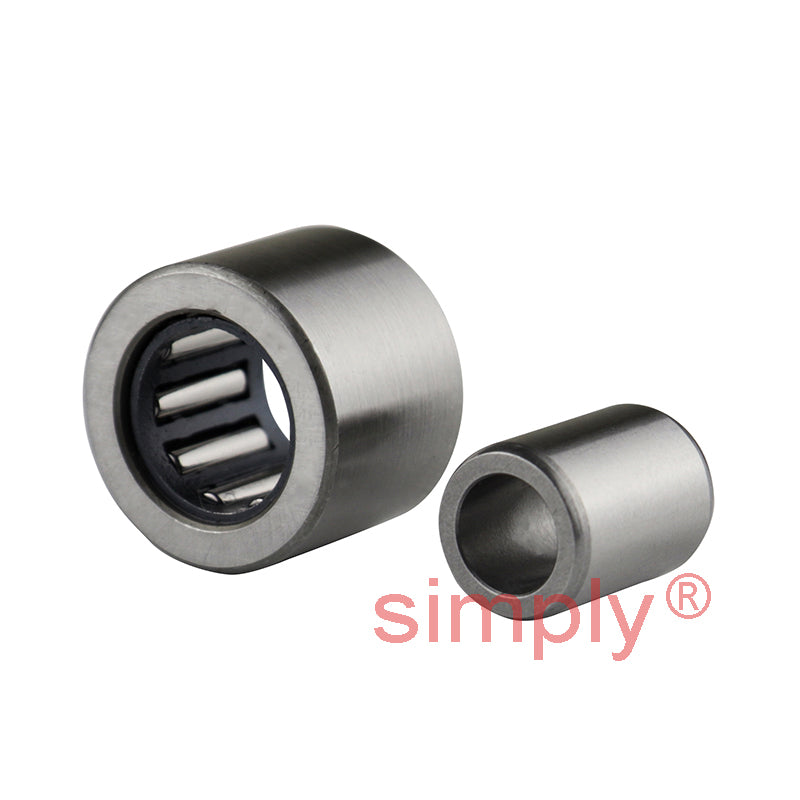

NKI5/16TN Budget Needle Roller Bearing / Shaft Sleeve 5x15x16mm
NKI5/16TN Budget Needle Roller Bearing / Shaft Sleeve 5x15x16mm
Regular price
$15.22
ex VAT
Regular price
Sale price
$15.22
ex VAT
In stock
Price Break
10+
$13.55
19+
$12.78
29+
$12.63
39+
$12.48
49+
$12.33
74+
$12.18
99+
$11.42
199+
$11.26
249+
$11.11
499+
$10.96
999+
$10.65
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 5mm
- Outside Diameter:
- 15mm
- Width:
- 16mm
Technical
Technical
| d | 5mm |
|---|---|
| D | 15mm |
| B | 16mm |
| Dynamic load C | 5010 N |
| Static load Co | 5850 N |
| Fatigue load limit Pu | 670 N |
| Speed in grease | 28000 rpm |
| Speed in oil | 40000 rpm |
| F | 8mm |
| r1r2 | 0.3mm |
| S (axial disp) | 2mm |
| da min | 7mm |
| Da max | 13mm |
| ra max | 0.3mm |
