SKU: NKI7/12TN-EU
NKI7/12TN Budget Needle Roller Bearing / Shaft Sleeve 7x17x12mm
NKI7/12TN Budget Needle Roller Bearing / Shaft Sleeve 7x17x12mm
Regular price
$11.21
ex VAT
Regular price
Sale price
$11.21
ex VAT
In stock
Price Break
10+
$9.98
19+
$9.42
29+
$9.30
39+
$9.19
49+
$9.08
74+
$8.97
99+
$8.41
199+
$8.30
249+
$8.18
499+
$8.07
999+
$7.85
Description
Description
|

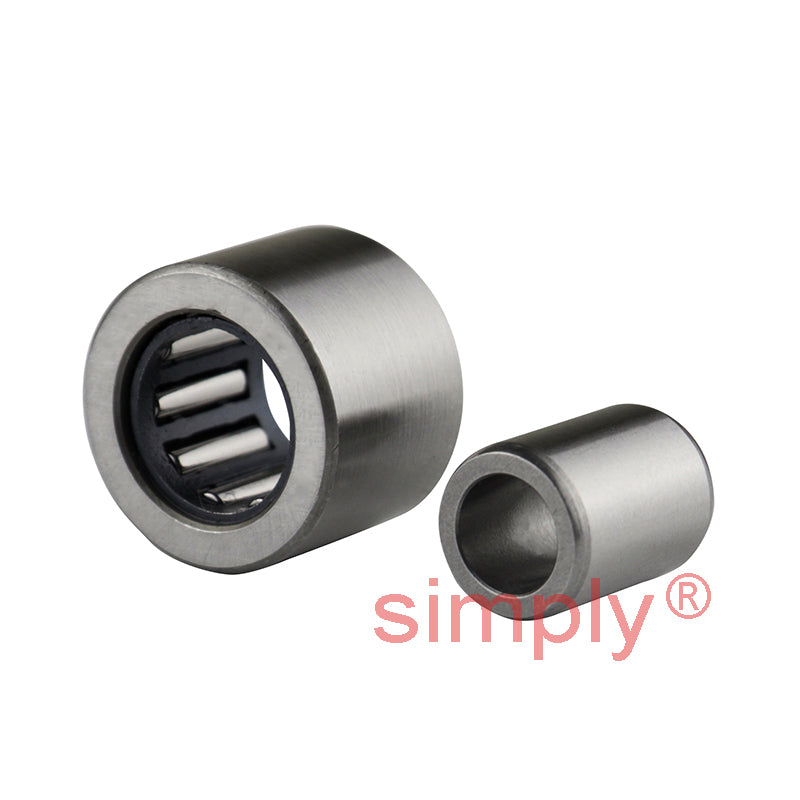

Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 7mm
- Outside Diameter:
- 17mm
- Width:
- 12mm
Technical
Technical
| d | 7mm |
|---|---|
| D | 17mm |
| B | 12mm |
| Dynamic load C | 4570 N |
| Static load Co | 5700 N |
| Fatigue load limit Pu | 630 N |
| Speed in grease | 22000 rpm |
| Speed in oil | 34000 rpm |
| F | 10mm |
| r1r2 | 0.3mm |
| S (axial disp) | 1.5mm |
| da min | 9mm |
| Da max | 15mm |
| ra max | 0.3mm |
