SKU: NKI7/16TN-EU

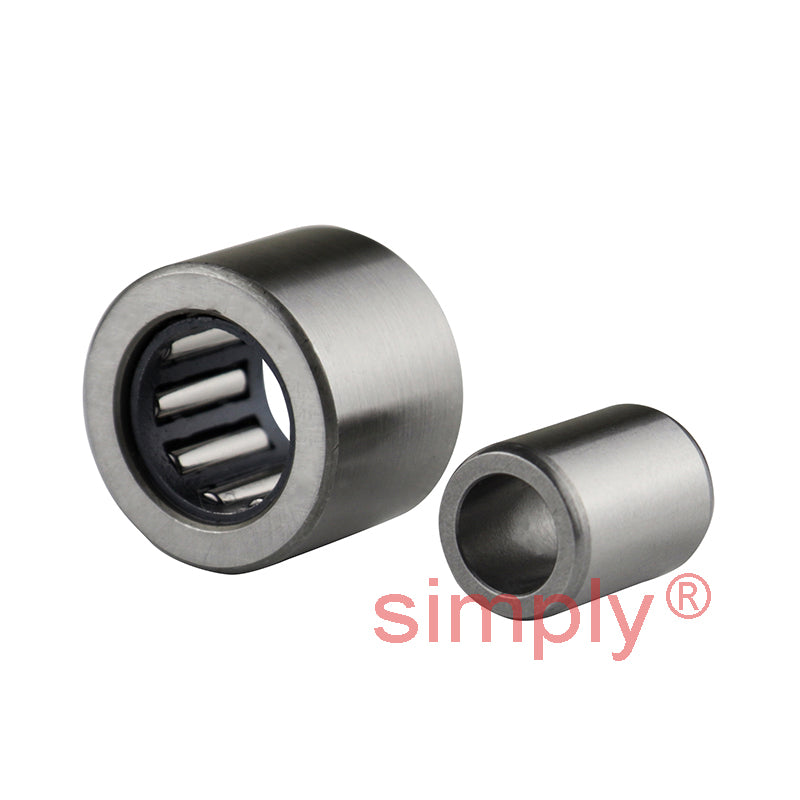

NKI7/16TN Budget Needle Roller Bearing / Shaft Sleeve 7x17x16mm
NKI7/16TN Budget Needle Roller Bearing / Shaft Sleeve 7x17x16mm
Regular price
$15.82
ex VAT
Regular price
Sale price
$15.82
ex VAT
In stock
Price Break
10+
$14.08
19+
$13.29
29+
$13.13
39+
$12.97
49+
$12.81
74+
$12.66
99+
$11.87
199+
$11.71
249+
$11.55
499+
$11.39
999+
$11.07
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 7mm
- Outside Diameter:
- 17mm
- Width:
- 16mm
Technical
Technical
| d | 7mm |
|---|---|
| D | 17mm |
| B | 16mm |
| Dynamic load C | 5940 N |
| Static load Co | 8000 N |
| Fatigue load limit Pu | 900 N |
| Speed in grease | 22000 rpm |
| Speed in oil | 34000 rpm |
| F | 10mm |
| r1r2 | 0.3mm |
| S (axial disp) | 2mm |
| da min | 9mm |
| Da max | 15mm |
| ra max | 0.3mm |
