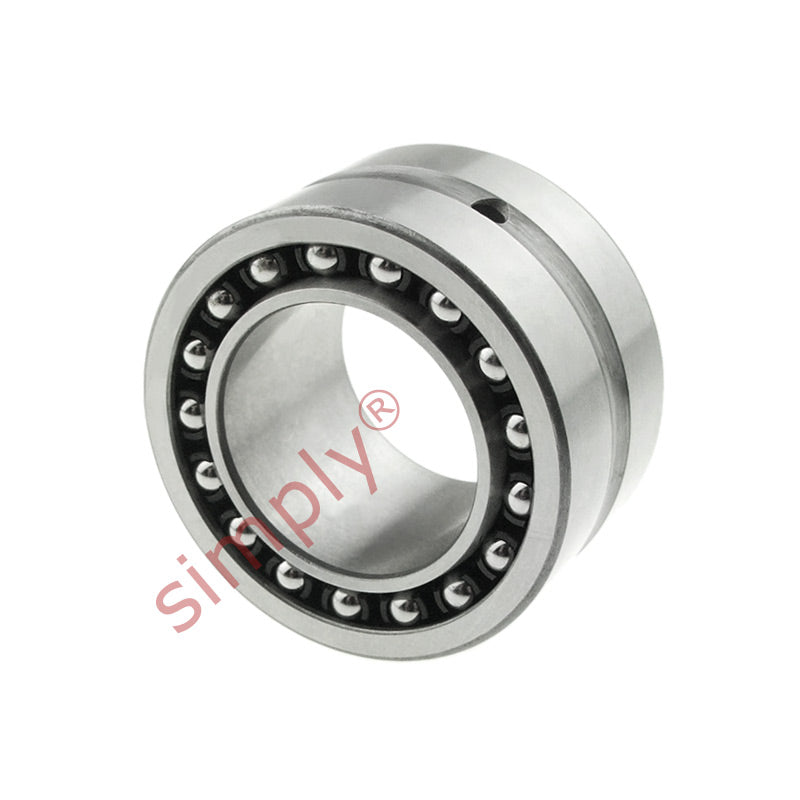

NKIA59/22 Budget Needle Roller / Angular Contact Ball Bearing 22x39x23mm
NKIA59/22 Budget Needle Roller / Angular Contact Ball Bearing 22x39x23mm
Regular price
$61.62
ex VAT
Regular price
Sale price
$61.62
ex VAT
In stock
Price Break
10+
$54.84
19+
$51.76
29+
$51.14
39+
$50.53
49+
$49.91
74+
$49.30
99+
$46.22
199+
$45.60
249+
$44.98
499+
$44.37
999+
$43.13
Description
Description
Budget Needle Roller / Angular Contact Combined: Accommodating thrust loads in a single direction and are easily mountable as they are supplied with a separable inner ring. (Use NKIB type where dual direction thrust loads are required) |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 39mm
- Width:
- 23mm
Technical
Technical
| d | 22mm |
|---|---|
| D | 39mm |
| B | 23mm |
| Radial dynamic load | 23300 N |
| Radial static load | 32000 N |
| Axial dynamic load | 4140 N |
| Axial static load | 4930 N |
| Fatigue load limit radial Pu | 3900 N |
| Fatigue load limit axial Pu | 205 N |
| Speed in grease | 9000 rpm |
| Speed in oil | 14000 rpm |
| F | 28mm |
| r1r2 | 0.3mm |
| da min | 24mm |
| Da max | 37mm |
| ra max | 0.3mm |
| Weight | 120 g |
