SKU: NKIB5913-MB
Major Brand NKIB5913 Needle Roller / Angular Contact Ball Bearing Assembly Double Direction Series
Major Brand NKIB5913 Needle Roller / Angular Contact Ball Bearing Assembly Double Direction Series
Regular price
$131.73
ex VAT
Regular price
Sale price
$131.73
ex VAT
In stock
Price Break
10+
$117.24
19+
$110.65
29+
$109.34
39+
$108.02
49+
$106.70
74+
$105.38
99+
$98.80
199+
$97.48
249+
$96.16
499+
$94.85
999+
$92.21
Couldn't load pickup availability
Description
Description
INA NKIB Needle Roller / Angular Contact Ball Bearings: This versatile bearing solution combines a radial needle bearing with an angular contact ball bearing. This enables it to handle heavy radial and light axial loads in both directions. This bearing is designed for high-speed operation and features a low cross-sectional height, making it ideal for space-constrained applications. Additionally, it offers a detachable design for ease of maintenance and assembly.
Benefits: High load-carrying capacity, high-speed capability, low cross-section
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 90mm
- Width:
- 38mm

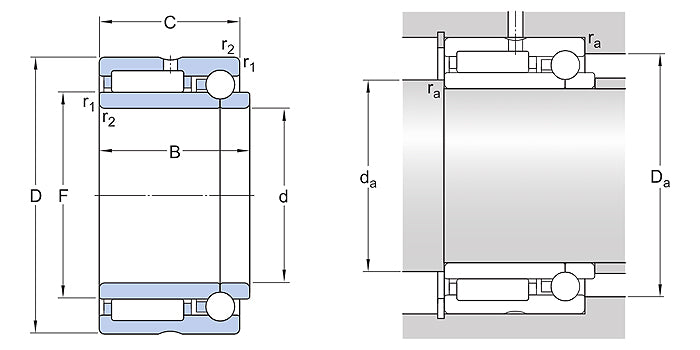

Technical
Technical
| d | 65mm |
|---|---|
| D | 90mm |
| B | 38mm |
| C | 34mm |
| Radial dynamic load | 60500 N |
| Radial static load | 118000 N |
| Axial dynamic load | 9960 N |
| Axial static load | 19200 N |
| Fatigue load limit radial Pu | 14600 N |
| Fatigue load limit axial Pu | 816 N |
| Speed in grease | 4000 rpm |
| Speed in oil | 5600 rpm |
| F | 72mm |
| r1r2 | 1mm |
| da min | 70mm |
| Da max | 85mm |
| ra max | 1mm |
