SKU: NKXR15-MB

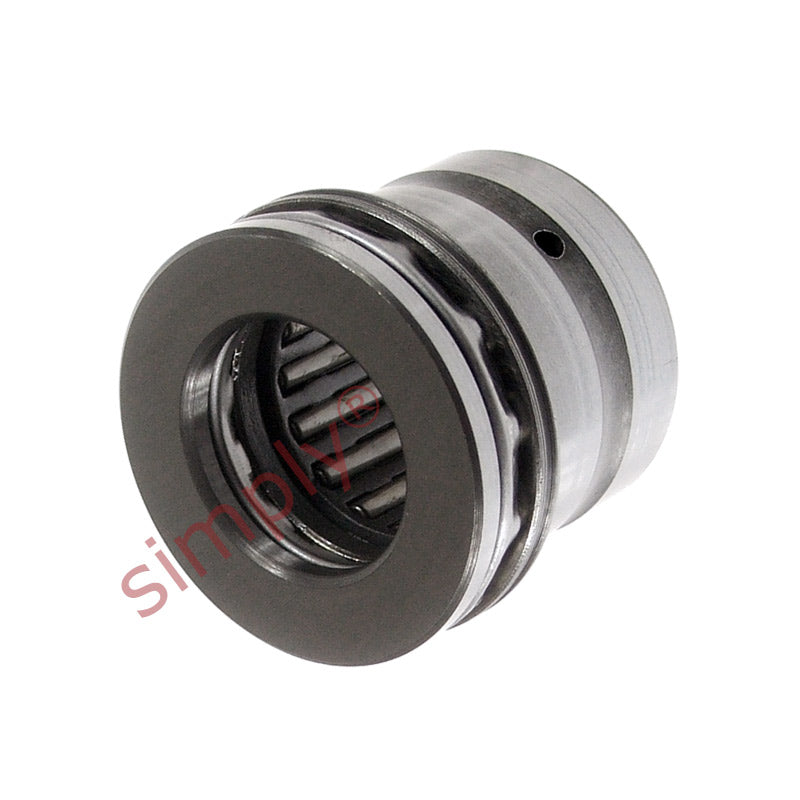

Major Brand NKXR15 Needle Roller Thrust Bearing without Cover 15x24x23mm
Major Brand NKXR15 Needle Roller Thrust Bearing without Cover 15x24x23mm
Regular price
$53.38
ex VAT
Regular price
Sale price
$53.38
ex VAT
In stock
Price Break
10+
$47.51
19+
$44.84
29+
$44.31
39+
$43.77
49+
$43.24
74+
$42.70
99+
$40.04
199+
$39.50
249+
$38.97
499+
$38.43
999+
$37.37
Description
Description
Needle Roller / Ball Roller Thrust Combination: Of a separable design, the outer ring with integral housing washer and integral needle roller cage assembly, the ball roller and the shaft washer can all be mounted individually. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 24mm
- Width:
- 23mm
Technical
Technical
| Fw | 15mm |
|---|---|
| D | 24mm |
| C | 23mm |
| Dynamic load | 11200 N |
| Static load | 14000 N |
| Axial dynamic load | 11200 N |
| Axial static load | 27000 N |
| Fatigue load limit radial Pu | 1660 N |
| Fatigue load limit axial Pu | 2450 N |
| Min load factor A | 0.058 |
| Speed in grease | 3200 rpm |
| Speed in oil | 4300 rpm |
| C1 | 9mm |
| C2 | 6.5mm |
| d | 15 |
