SKU: NKXR20Z-EU

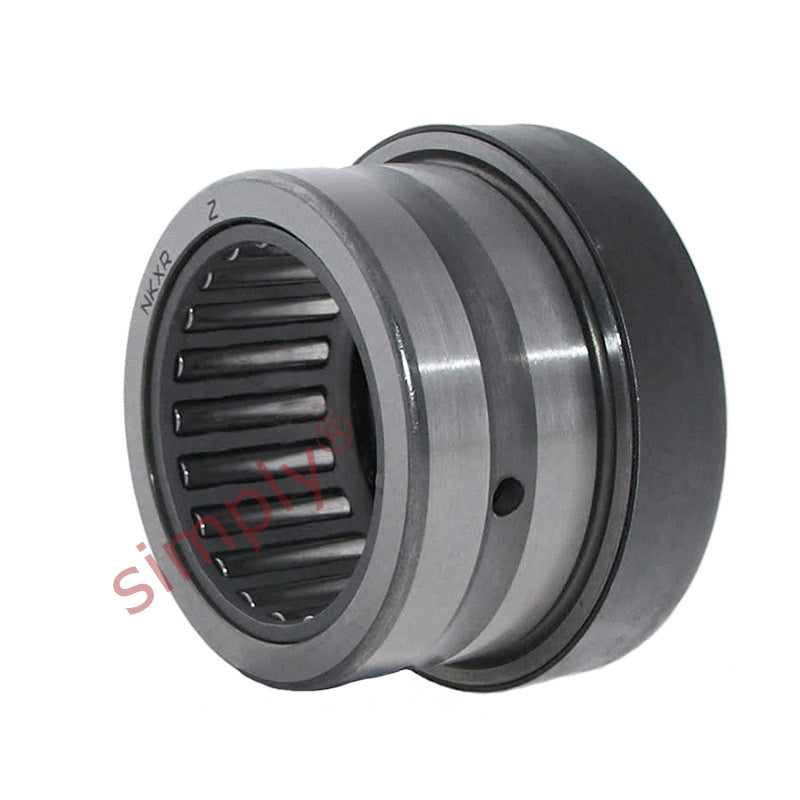

NKXR20Z Budget Needle Roller Thrust Bearing with Cover 20x30x30mm
NKXR20Z Budget Needle Roller Thrust Bearing with Cover 20x30x30mm
Regular price
$34.80
ex VAT
Regular price
Sale price
$34.80
ex VAT
In stock
Price Break
10+
$30.97
19+
$29.23
29+
$28.88
39+
$28.54
49+
$28.19
74+
$27.84
99+
$26.10
199+
$25.75
249+
$25.40
499+
$25.06
999+
$24.36
Description
Description
|
Budget Needle Roller / Ball Roller Thrust Combination: Of a none separable design, the outer ring with integral housing washer and integral needle roller cage assembly. Benefits: High thrust loading, easily mounted |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 30mm
- Width:
- 30mm
- Seals / Shields:
- Metal Shields
Technical
Technical
| Fw | 20mm |
|---|---|
| D | 30mm |
| C | 30mm |
| Dynamic load | 16800 N |
| Static load | 26000 N |
| Axial dynamic load | 18600 N |
| Axial static load | 48000 N |
| Fatigue load limit radial Pu | 3050 N |
| Fatigue load limit axial Pu | 4650 N |
| Min load factor A | 0.18 |
| Speed in grease | 2800 rpm |
| Speed in oil | 3800 rpm |
| C1 | 10mm |
| C2 | 10.5mm |
| d | 20mm |
| D2 | 36.2mm |
| r1r2 min | 0.3mm |
| da | 30.7mm |
| ra max | 0.3mm |
| rb max | 0.3mm |
| di | 17mm |
| F | 20mm |
| B1 | 20mm |
| Inner ring | IR17x20x20 |
| Weight | 84 g |
