SKU: NKXR35Z-EU

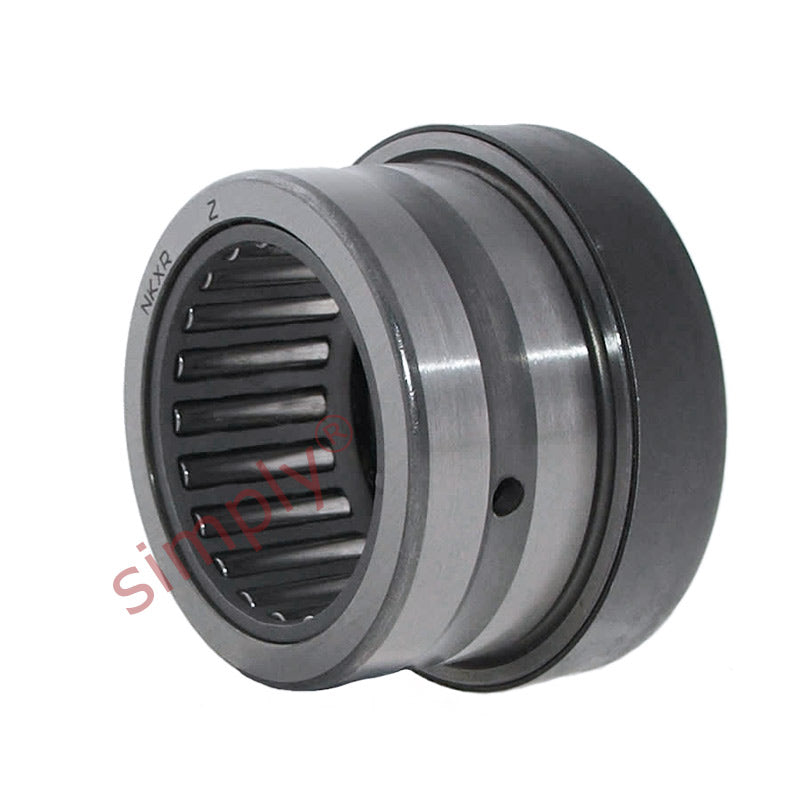

NKXR35Z Budget Needle Roller Thrust Bearing with Cover 35x47x30mm
NKXR35Z Budget Needle Roller Thrust Bearing with Cover 35x47x30mm
Regular price
$35.42
ex VAT
Regular price
Sale price
$35.42
ex VAT
In stock
Price Break
10+
$31.52
19+
$29.75
29+
$29.40
39+
$29.04
49+
$28.69
74+
$28.34
99+
$26.57
199+
$26.21
249+
$25.86
499+
$25.50
999+
$24.79
Description
Description
|
Budget Needle Roller / Ball Roller Thrust Combination: Of a none separable design, the outer ring with integral housing washer and integral needle roller cage assembly. Benefits: High thrust loading, easily mounted |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 47mm
- Width:
- 30mm
- Seals / Shields:
- Metal Shields
Technical
Technical
| Fw | 35mm |
|---|---|
| D | 47mm |
| C | 30mm |
| Dynamic load | 24600 N |
| Static load | 45000 N |
| Axial dynamic load | 29000 N |
| Axial static load | 93000 N |
| Fatigue load limit radial Pu | 5600 N |
| Fatigue load limit axial Pu | 9150 N |
| Min load factor A | 0.69 |
| Speed in grease | 1900 rpm |
| Speed in oil | 2800 rpm |
| C1 | 12mm |
| C2 | 9mm |
| d | 35mm |
| D2 | 53.2mm |
| r1r2 min | 0.6mm |
| da | 47.7mm |
| ra max | 0.6mm |
| rb max | 0.3mm |
| di | 30mm |
| F | 35mm |
| B1 | 20mm |
| Inner ring | IR30x35x20 |
| Weight | 170 g |
