SKU: NKXR40-EU

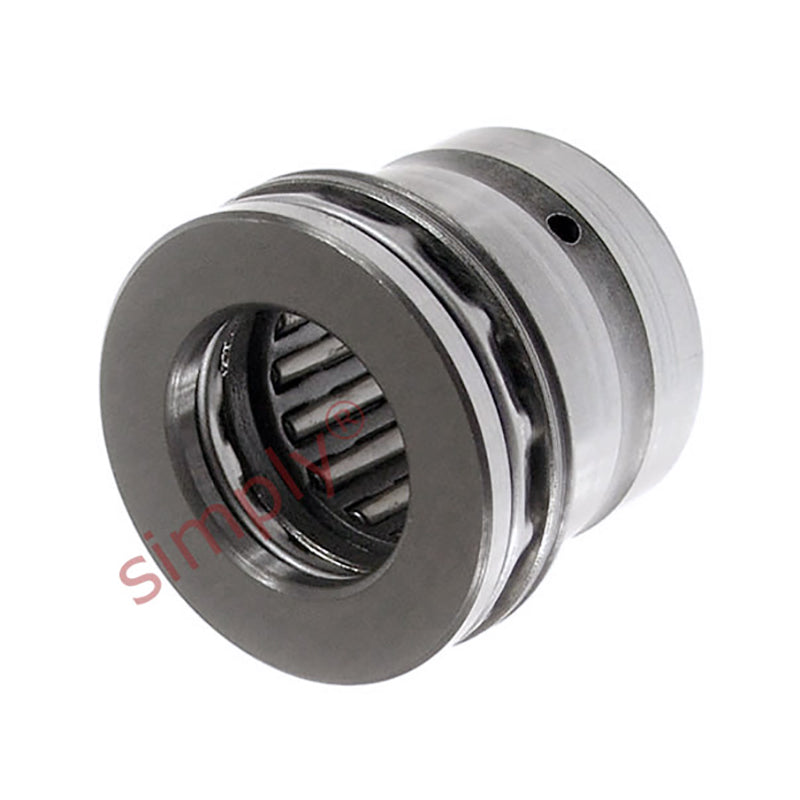

NKXR40 Budget Needle Roller Thrust Bearing without Cover 40x52x32mm
NKXR40 Budget Needle Roller Thrust Bearing without Cover 40x52x32mm
Regular price
$91.25
ex VAT
Regular price
Sale price
$91.25
ex VAT
In stock
Price Break
10+
$81.21
19+
$76.65
29+
$75.74
39+
$74.83
49+
$73.91
74+
$73.00
99+
$68.44
199+
$67.53
249+
$66.61
499+
$65.70
999+
$63.88
Description
Description
Budget Needle Roller / Ball Roller Thrust Combination: Of a separable design, the outer ring with integral housing washer and integral needle roller cage assembly, the ball roller and the shaft washer can all be mounted individually. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 52mm
- Width:
- 32mm
Technical
Technical
| Fw | 40mm |
|---|---|
| D | 52mm |
| C | 32mm |
| Dynamic load | 26400 N |
| Static load | 51000 N |
| Axial dynamic load | 43000 N |
| Axial static load | 137000 N |
| Fatigue load limit radial Pu | 6300 N |
| Fatigue load limit axial Pu | 13700 N |
| Min load factor A | 1.5 |
| Speed in grease | 1700 rpm |
| Speed in oil | 2400 rpm |
| C1 | 13mm |
| C2 | 10mm |
| d | 40mm |
| D1 | 60mm |
| r1r2 min | 0.6mm |
| da | 55.7mm |
| ra max | 0.6mm |
| rb max | 0.3mm |
| di | 35mm |
| F | 40mm |
| B1 | 20mm |
| Inner ring | IR35x40x20 |
| Weight | 200 g |
