SKU: NKXR40Z-EU

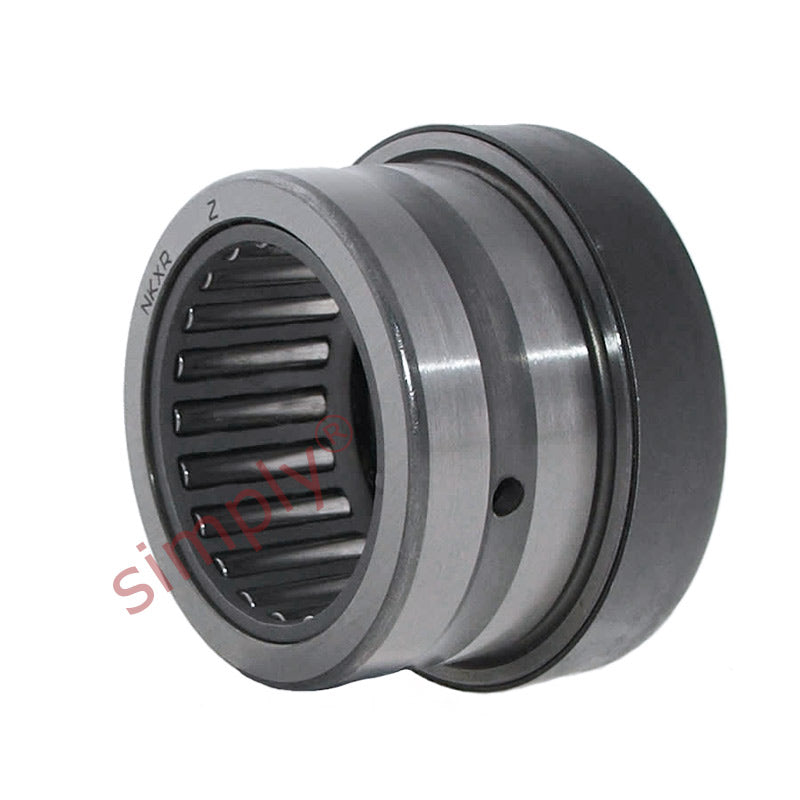

NKXR40Z Budget Needle Roller Thrust Bearing with Cover 40x52x32mm
NKXR40Z Budget Needle Roller Thrust Bearing with Cover 40x52x32mm
Regular price
$51.43
ex VAT
Regular price
Sale price
$51.43
ex VAT
In stock
Price Break
10+
$45.77
19+
$43.20
29+
$42.69
39+
$42.17
49+
$41.66
74+
$41.14
99+
$38.57
199+
$38.06
249+
$37.54
499+
$37.03
999+
$36.00
Description
Description
|
Budget Needle Roller / Ball Roller Thrust Combination: Of a none separable design, the outer ring with integral housing washer and integral needle roller cage assembly. Benefits: High thrust loading, easily mounted |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 52mm
- Width:
- 32mm
- Seals / Shields:
- Metal Shields
Technical
Technical
| Fw | 40mm |
|---|---|
| D | 52mm |
| C | 32mm |
| Dynamic load | 26400 N |
| Static load | 51000 N |
| Axial dynamic load | 43000 N |
| Axial static load | 137000 N |
| Fatigue load limit radial Pu | 6300 N |
| Fatigue load limit axial Pu | 13700 N |
| Min load factor A | 1.5 |
| Speed in grease | 1700 rpm |
| Speed in oil | 2400 rpm |
| C1 | 13mm |
| C2 | 10mm |
| d | 40mm |
| D2 | 61.2mm |
| r1r2 min | 0.6mm |
| da | 55.7mm |
| ra max | 0.6mm |
| rb max | 0.3mm |
| di | 35mm |
| F | 40mm |
| B1 | 20mm |
| Inner ring | IR35x40x20 |
| Weight | 210 g |
