SKU: NKXR45Z-EU

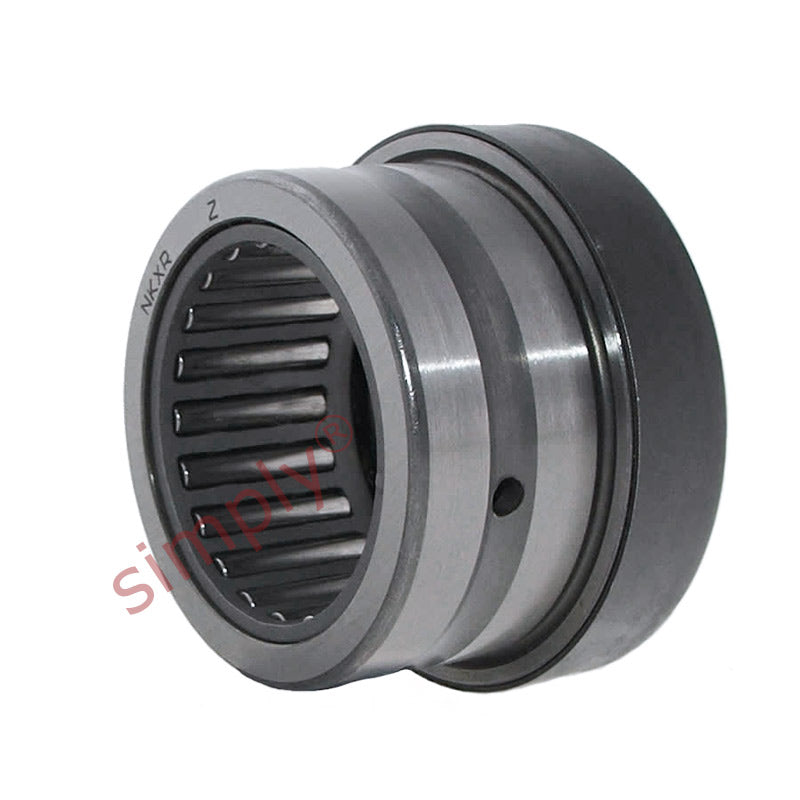

NKXR45Z Budget Needle Roller Thrust Bearing with Cover 45x58x32mm
NKXR45Z Budget Needle Roller Thrust Bearing with Cover 45x58x32mm
Regular price
$51.00
ex VAT
Regular price
Sale price
$51.00
ex VAT
In stock
Price Break
10+
$45.39
19+
$42.84
29+
$42.33
39+
$41.82
49+
$41.31
74+
$40.80
99+
$38.25
199+
$37.74
249+
$37.23
499+
$36.72
999+
$35.70
Description
Description
|
Budget Needle Roller / Ball Roller Thrust Combination: Of a none separable design, the outer ring with integral housing washer and integral needle roller cage assembly. Benefits: High thrust loading, easily mounted |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 58mm
- Width:
- 32mm
- Seals / Shields:
- Metal Shields
Technical
Technical
| Fw | 45mm |
|---|---|
| D | 58mm |
| C | 32mm |
| Dynamic load | 28100 N |
| Static load | 57000 N |
| Axial dynamic load | 45000 N |
| Axial static load | 153000 N |
| Fatigue load limit radial Pu | 7100 N |
| Fatigue load limit axial Pu | 15300 N |
| Min load factor A | 1.9 |
| Speed in grease | 1600 rpm |
| Speed in oil | 2200 rpm |
| C1 | 14mm |
| C2 | 9mm |
| d | 45mm |
| D2 | 66.5mm |
| r1r2 min | 0.6mm |
| da | 60.6mm |
| ra max | 0.6mm |
| rb max | 0.3mm |
| di | 40mm |
| F | 45mm |
| B1 | 20mm |
| Inner ring | IR40x45x20 |
| Weight | 260 g |
