SKU: NP1030K-RHP

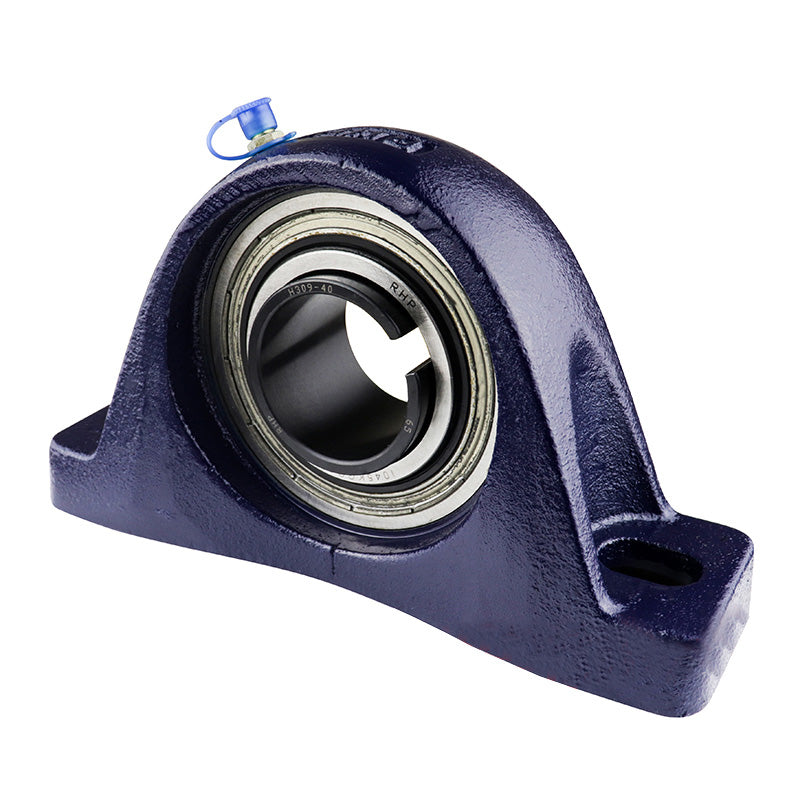

RHP NP1030K Two Bolt Cast Iron Pillow Block and 1 Bore and Taper Bore Insert (No Sleeve)
RHP NP1030K Two Bolt Cast Iron Pillow Block and 1 Bore and Taper Bore Insert (No Sleeve)
Regular price
$64.72
ex VAT
Regular price
Sale price
$64.72
ex VAT
In stock
Price Break
10+
$57.60
19+
$54.36
29+
$53.72
39+
$53.07
49+
$52.42
74+
$51.78
99+
$48.54
199+
$47.89
249+
$47.25
499+
$46.60
999+
$45.30
Description
Description
|
RHP NP K Series Plummer / Pillow Housings: Supplied with a sealed full width taper bore bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing has a taper bore to accommodate fitting with a taper sleeve (not supplied) which is tightened using a lock nut to secure to the shaft after installation, the locknut is subsequently secured with the tab washer. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- NP
- Bolt Hole Centres:
- 4.272-5.098 inch
Technical
Technical
| L | 6.319 inch |
|---|---|
| H | 1.689 inch |
| H1 | 0.697 inch |
| H2 | 3.256 inch |
| J max | 5.098 inch |
| J min | 4.272 inch |
| G | 0.5 inch |
| A | 1.634 inch |
| A1 | 1.083 |
| B5 | 1.22 |
| d4 | 1.772 inch |
| Dynamic load Cr | 19500 N |
| Static load Cor | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 1.3 kg |
| Insert | <a href="advanced_search_result.php?keywords=1030K+insonly">1030K Click Here</a> |
| Casting group | 4 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
