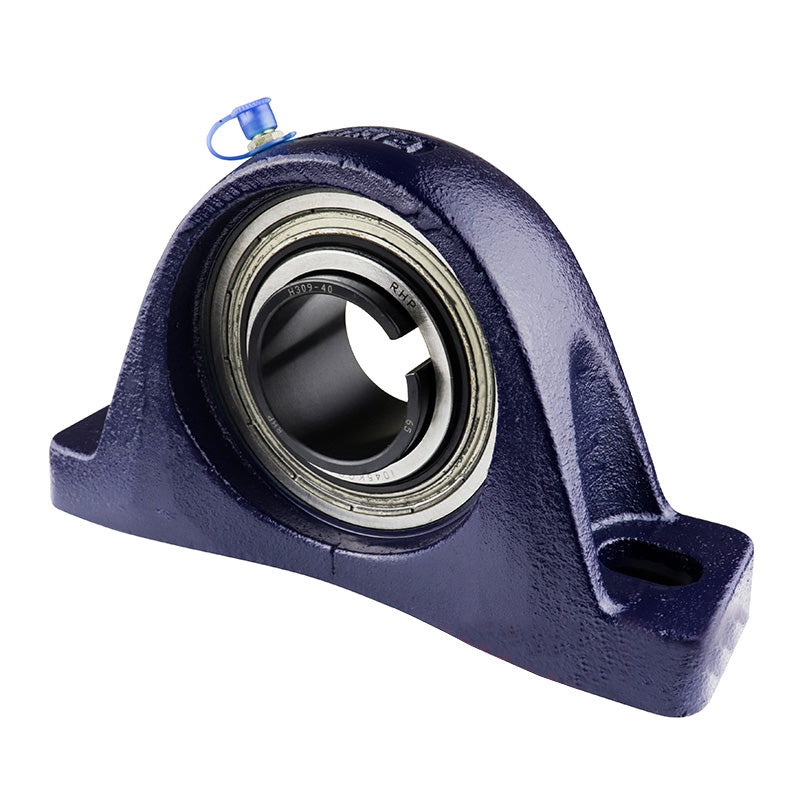

• RHP NP1035-30K Two Bolt Cast Iron Pillow Block and 30mm Bore Taper Insert with Sleeve and Lock Nut
1 1

SKU: NP1035-30K-RHP

RHP NP1035-30K Two Bolt Cast Iron Pillow Block and 30mm Bore Taper Insert with Sleeve and Lock Nut

RHP NP1035-30K Two Bolt Cast Iron Pillow Block and 30mm Bore Taper Insert with Sleeve and Lock Nut
$98.00 ex VAT
$98.00 ex VAT
Sale Sold out

In stock

Price Break
10+ $87.22
19+ $82.32
29+ $81.34
39+ $80.36
49+ $79.38
74+ $78.40
99+ $73.50
199+ $72.52
249+ $71.54
499+ $70.56
999+ $68.60
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP NP K-XX Series Plummer / Pillow Housings: Supplied with a sealed full width taper sleeve bearing insert fitted in the housing complete with taper sleeve, lock nut and tab washer and includes a grease nipple to facilitate re-lubrication. The bearing has a taper bore to accommodate the taper sleeve which is tightened using a lock nut to secure to the shaft after installation, the locknut is subsequently secured with the tab washer.
The insert can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, taper sleeve fixing, insert extends to front and back
Brand / Quality:
RHP - High Quality
Inside Diameter:
30mm
Style:
NP
Bolt Hole Centres:
121.5-136.5mm
Technical
Bore 30mm
L 166mm
H 47.6mm
H1 17.5mm
H2 93mm
J max 136.5mm
J min 121.5mm
G 12mm
A 44.5mm
A1 30.5mm
B5 35mm
d4 52mm
Dynamic load Cr 25700 N
Static load Cor 15300 N
Rec max speed 4500 rpm
Weight 1.7 kg
Insert <a href="advanced_search_result.php?keywords=1035K+insonly">1035K Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
