SKU: NP1045K-RHP

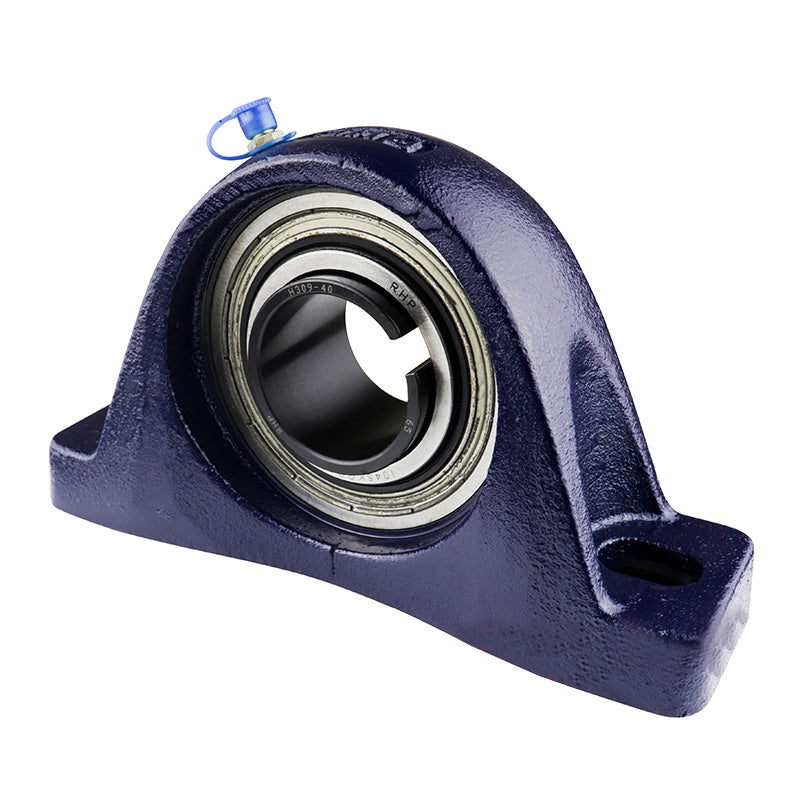

RHP NP1045K Two Bolt Cast Iron Pillow Block and 1-1/2 Bore and Taper Bore Insert (No Sleeve)
RHP NP1045K Two Bolt Cast Iron Pillow Block and 1-1/2 Bore and Taper Bore Insert (No Sleeve)
Regular price
$100.32
ex VAT
Regular price
Sale price
$100.32
ex VAT
In stock
Price Break
10+
$89.28
19+
$84.27
29+
$83.27
39+
$82.26
49+
$81.26
74+
$80.26
99+
$75.24
199+
$74.24
249+
$73.23
499+
$72.23
999+
$70.22
Description
Description
|
RHP NP K Series Plummer / Pillow Housings: Supplied with a sealed full width taper bore bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing has a taper bore to accommodate fitting with a taper sleeve (not supplied) which is tightened using a lock nut to secure to the shaft after installation, the locknut is subsequently secured with the tab washer. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- NP
- Bolt Hole Centres:
- 5.531-6.083 inch
Technical
Technical
| L | 7.5 inch |
|---|---|
| H | 2.126 inch |
| H1 | 0.787 inch |
| H2 | 4.252 inch |
| J max | 6.083 inch |
| J min | 5.531 inch |
| G | 0.5 inch |
| A | 2.126 inch |
| A1 | 1.378 |
| B5 | 1.535 |
| d4 | 2.559 inch |
| Dynamic load Cr | 32500 N |
| Static load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1045K+insonly">1045K Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
