SKU: NP1055-2K-RHP

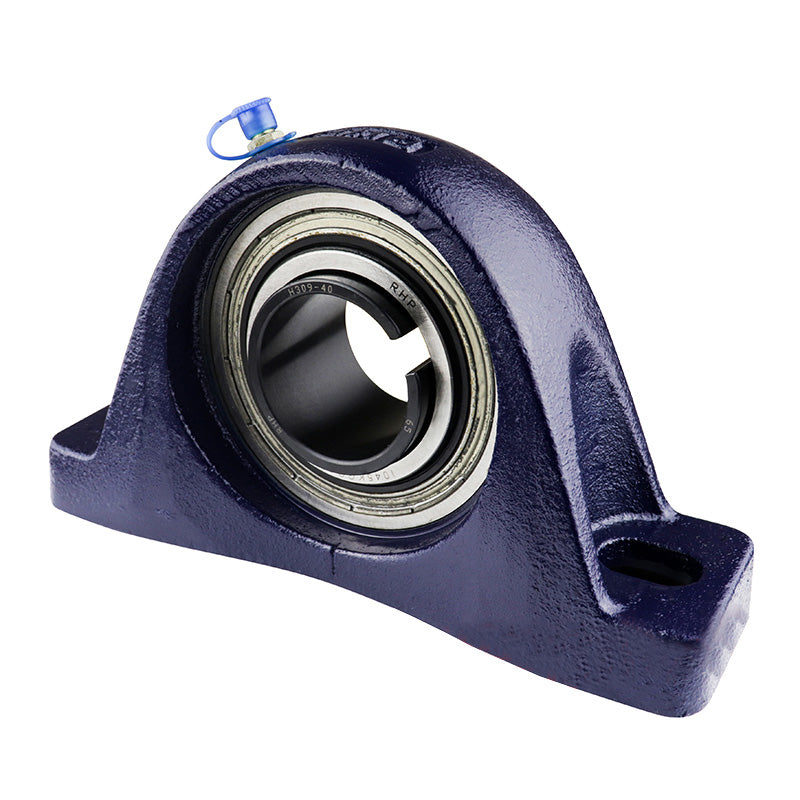

RHP NP1055-2K Two Bolt Cast Iron Pillow Block and 2 Bore Taper Insert with Sleeve and Lock Nut
RHP NP1055-2K Two Bolt Cast Iron Pillow Block and 2 Bore Taper Insert with Sleeve and Lock Nut
Regular price
$213.10
ex VAT
Regular price
Sale price
$213.10
ex VAT
In stock
Price Break
10+
$189.66
19+
$179.00
29+
$176.87
39+
$174.74
49+
$172.61
74+
$170.48
99+
$159.83
199+
$157.69
249+
$155.56
499+
$153.43
999+
$149.17
Description
Description
|
RHP NP K-XX Series Plummer / Pillow Housings: Supplied with a sealed full width taper sleeve bearing insert fitted in the housing complete with taper sleeve, lock nut and tab washer and includes a grease nipple to facilitate re-lubrication. The bearing has a taper bore to accommodate the taper sleeve which is tightened using a lock nut to secure to the shaft after installation, the locknut is subsequently secured with the tab washer. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- NP
- Bolt Hole Centres:
- 6.398-7.028 inch
Technical
Technical
| Bore | 2 inch |
|---|---|
| L | 8.641 inch |
| H | 2.5 inch |
| H1 | 0.976 inch |
| H2 | 5.098 inch |
| J max | 7.028 inch |
| J min | 6.398 inch |
| G | 0.625 inch |
| A | 2.362 inch |
| A1 | 1.555 |
| B5 | 1.772 |
| d4 | 2.953 inch |
| Dynamic load Cr | 43500 N |
| Static load Cor | 29200 N |
| Rec max speed | 3100 rpm |
| Weight | 4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1055K+insonly">1055K Click Here</a> |
| Casting group | 9 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
