SKU: NP2DEC-RHP

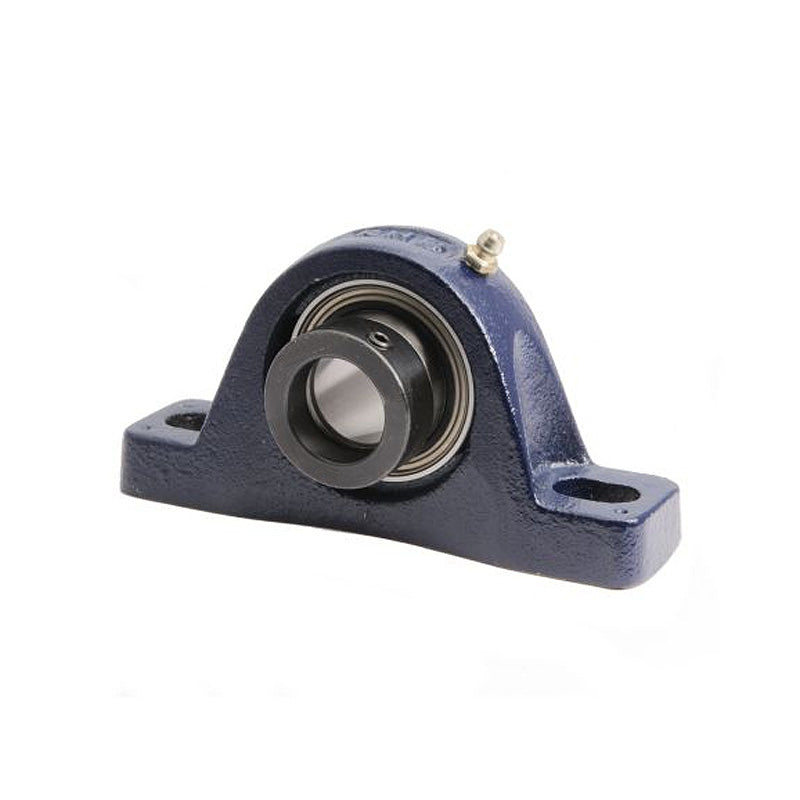

RHP NP2DEC Two Bolt Cast Iron Pillow Block and 2 Bore Eccentric Collar Full Width Insert
RHP NP2DEC Two Bolt Cast Iron Pillow Block and 2 Bore Eccentric Collar Full Width Insert
Regular price
$180.52
ex VAT
Regular price
Sale price
$180.52
ex VAT
In stock
Price Break
10+
$160.66
19+
$151.64
29+
$149.83
39+
$148.03
49+
$146.22
74+
$144.42
99+
$135.39
199+
$133.58
249+
$131.78
499+
$129.97
999+
$126.36
Description
Description
|
RHP NP-DEC Series Plummer / Pillow Housings: Supplied with a full width sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft once fitted. The insert can be removed from the housings for future replacement as required. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- NP
- Bolt Hole Centres:
- 6.398-7.028 inch
Technical
Technical
| Bore | 2 inch |
|---|---|
| L | 8.641 inch |
| H | 2.5 inch |
| H1 | 0.976 inch |
| H2 | 5.098 inch |
| J max | 7.028 inch |
| J min | 6.398 inch |
| G | 0.625 inch |
| A | 2.362 inch |
| A1 | 1.555 inch |
| B3 | 2.813 inch |
| s2 | 1.095 inch |
| d2 | 3 inch |
| Dynamic load Cr | 43500 N |
| Static load Cor | 29200 N |
| Rec max speed | 3100 rpm |
| Weight | 4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1055-2DECG+insonly">1055-2DECG Click Here</a> |
| Casting group | 9 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
