SKU: NP3.1/4-RHP

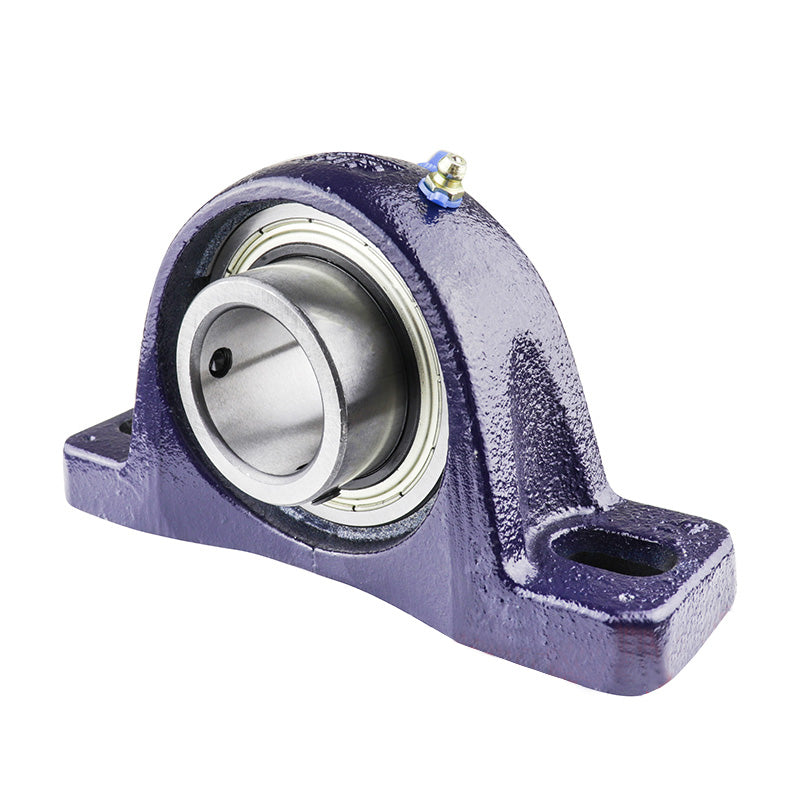

RHP NP3-1/4 Two Bolt Cast Iron Pillow Block and 3-1/4 Bore Grub Screw Full Width Insert
RHP NP3-1/4 Two Bolt Cast Iron Pillow Block and 3-1/4 Bore Grub Screw Full Width Insert
Regular price
$551.43
ex VAT
Regular price
Sale price
$551.43
ex VAT
In stock
Price Break
10+
$490.77
19+
$463.20
29+
$457.69
39+
$452.17
49+
$446.66
74+
$441.14
99+
$413.57
199+
$408.06
249+
$402.54
499+
$397.03
999+
$386.00
Description
Description
|
RHP NP Series Plummer / Pillow Housings: Supplied with a full width sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 82.55mm = 3.25 (3-1/4) inch
- Style:
- NP
- Bolt Hole Centres:
- 9.134-10.315 inch
Technical
Technical
| Bore | 3-1/4 inch |
|---|---|
| L | 12.205 inch |
| H | 3.748 inch |
| H1 | 1.26 inch |
| H2 | 7.362 inch |
| J max | 10.315 inch |
| J min | 9.134 inch |
| G | 0.875 inch |
| A | 3.268 inch |
| A1 | 2.205 inch |
| B | 3.375 inch |
| s | 1.346 inch |
| d1 | 4.174 inch |
| Dynamic load Cr | 83000 N |
| Static load Cor | 64000 N |
| Rec max speed | 2000 rpm |
| Weight | 11.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1085-3-1/4G+insonly">1085-3-1/4G Click Here</a> |
| Casting group | 14 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
