SKU: NP3L-RHP

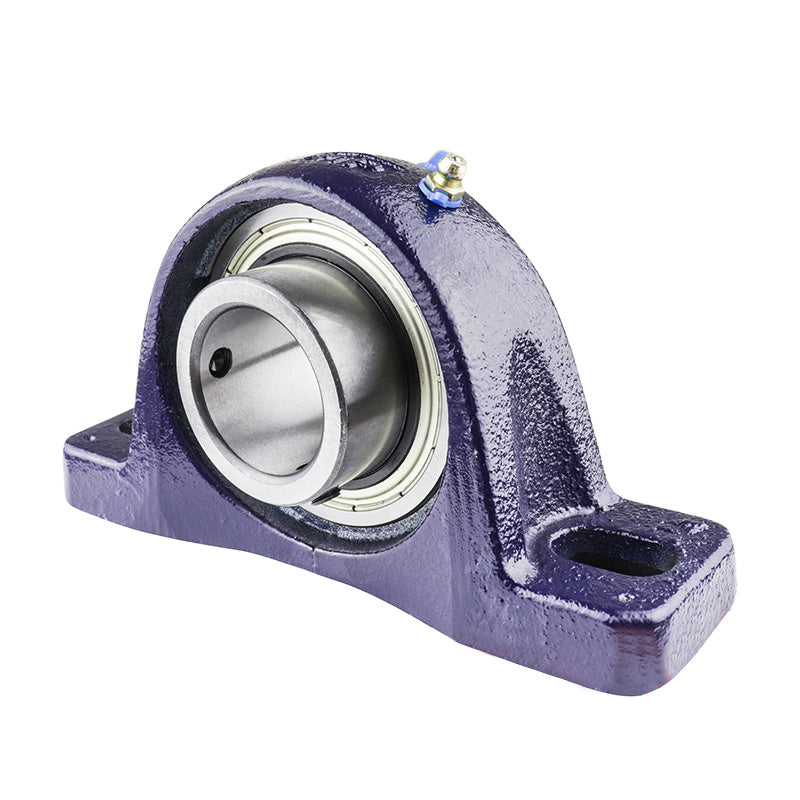

RHP NP3L Two Bolt Cast Iron Pillow Block and 3 Bore Grub Screw Full Width Insert
RHP NP3L Two Bolt Cast Iron Pillow Block and 3 Bore Grub Screw Full Width Insert
Regular price
$326.71
ex VAT
Regular price
Sale price
$326.71
ex VAT
In stock
Price Break
10+
$290.77
19+
$274.44
29+
$271.17
39+
$267.90
49+
$264.64
74+
$261.37
99+
$245.03
199+
$241.77
249+
$238.50
499+
$235.23
999+
$228.70
Description
Description
|
RHP NP Series Plummer / Pillow Housings: Supplied with a full width sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 76.2mm = 3 inch
- Style:
- NP
- Bolt Hole Centres:
- 8.425-9.488 inch
Technical
Technical
| Bore | 3 inch |
|---|---|
| L | 11.457 inch |
| H | 3.5 inch |
| H1 | 1.181 inch |
| H2 | 6.85 inch |
| J max | 9.488 inch |
| J min | 8.425 inch |
| G | 0.875 inch |
| A | 3.071 inch |
| A1 | 2.205 inch |
| B | 3.25 inch |
| s | 1.314 inch |
| d1 | 3.878 inch |
| Dynamic load Cr | 71500 N |
| Static load Cor | 54500 N |
| Rec max speed | 2150 rpm |
| Weight | 9.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1080-3G+insonly">1080-3G Click Here</a> |
| Casting group | 13 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
