SKU: NP7/8EC-RHP

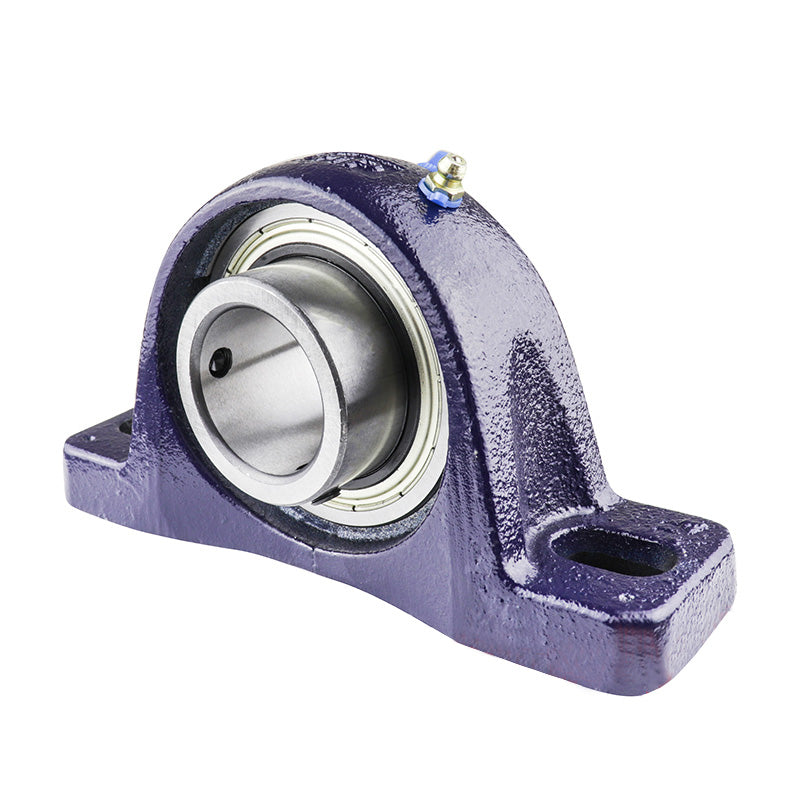

RHP NP7/8EC Two Bolt Cast Iron Pillow Block and 7/8 Bore Eccentric Collar Flat Back Insert
RHP NP7/8EC Two Bolt Cast Iron Pillow Block and 7/8 Bore Eccentric Collar Flat Back Insert
Regular price
$56.73
ex VAT
Regular price
Sale price
$56.73
ex VAT
In stock
Price Break
10+
$50.49
19+
$47.65
29+
$47.09
39+
$46.52
49+
$45.95
74+
$45.38
99+
$42.55
199+
$41.98
249+
$41.41
499+
$40.85
999+
$39.71
Description
Description
|
RHP NP-EC Series Plummer / Pillow Housings: Supplied with a flat back sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Style:
- NP
- Bolt Hole Centres:
- 3.811-4.437 inch
Technical
Technical
| Bore | 7/8 inch |
|---|---|
| L | 5.472 inch |
| H | 1.437 inch |
| H1 | 0.63 inch |
| H2 | 2.795 inch |
| J max | 4.437 inch |
| J min | 3.811 inch |
| G | 0.375 inch |
| A | 1.437 inch |
| A1 | 0.965 inch |
| B2 | 1.217 inch |
| s1 | 0.298 inch |
| d2 | 1.5 inch |
| Dynamic load Cr | 14000 N |
| Static load Cor | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1225-7/8ECG+insonly">1225-7/8ECG Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
