SKU: NTA512
NTA512 Needle Roller Cage Only 0.31x0.75x0.0781 inch
NTA512 Needle Roller Cage Only 0.31x0.75x0.0781 inch
Regular price
$2.27
ex VAT
Regular price
Sale price
$2.27
ex VAT
Equivalent to: NTC512
In stock
Price Break
10+
$2.02
19+
$1.91
29+
$1.88
39+
$1.86
49+
$1.84
74+
$1.82
99+
$1.70
199+
$1.68
249+
$1.66
499+
$1.63
999+
$1.59
Couldn't load pickup availability
Description
Description
|
NTA Imperial Series Needle Roller Thrust Bearings: Needle roller cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the TR series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing. |
Equivalent: NTC512
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 7.93mm = 0.312 (5/16) inch
- Outside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Width:
- 1.98mm = 0.078 (5/64) inch

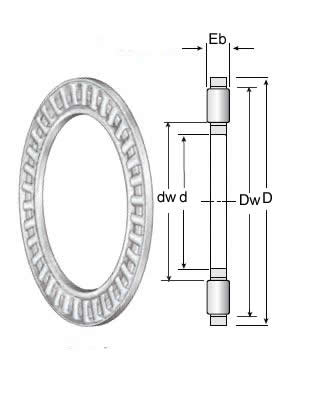

Technical
Technical
| d | 0.312 inch |
|---|---|
| D | 0.75 inch |
| Eb | 0.0781 inch |
| Dw | 0.64 inch |
| dw | 0.40 inch |
| Dynamic load | 5.83 kN |
| Static load | 13.17 kN |
| Limiting speed | 24000 rpm |
| Weight | 0.001816 kg |
