SKU: NU2309-CDX

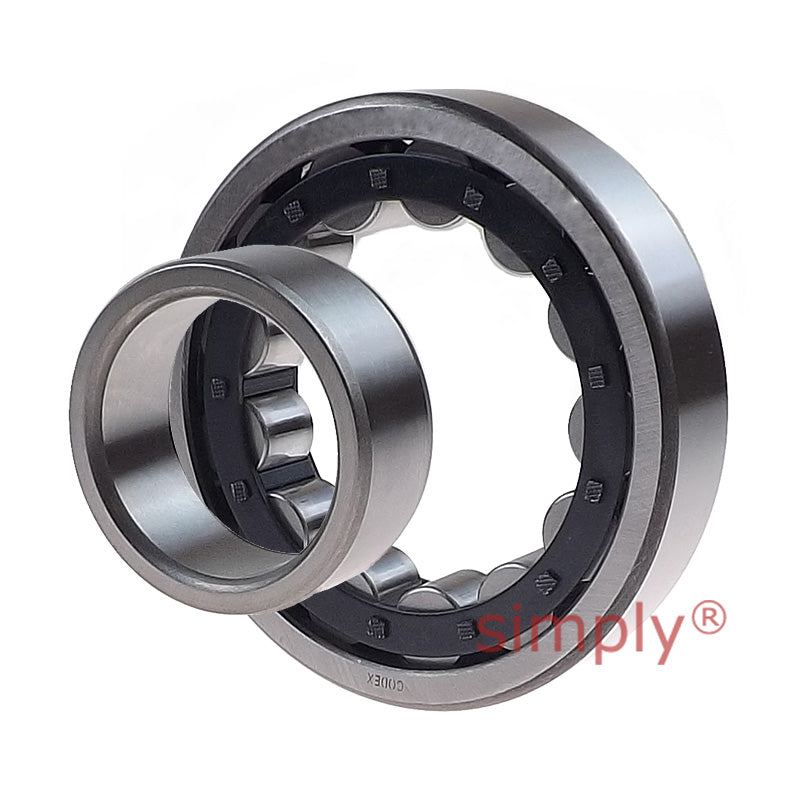

Codex NU2309 Single Row Cylindrical Roller Bearing 45x100x36mm
Codex NU2309 Single Row Cylindrical Roller Bearing 45x100x36mm
Regular price
$101.40
ex VAT
Regular price
Sale price
$101.40
ex VAT
In stock
Price Break
10+
$90.25
19+
$85.18
29+
$84.16
39+
$83.15
49+
$82.13
74+
$81.12
99+
$76.05
199+
$75.04
249+
$74.02
499+
$73.01
999+
$70.98
Description
Description
|
NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 36mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 45mm |
|---|---|
| D | 100mm |
| B | 36mm |
| Dynamic load C | 160 kN |
| Static load Co | 153 kN |
| Fatigue load limit Pu | 20 kN |
| Reference speed | 7500 rpm |
| Limiting speed | 8500 rpm |
| Weight | 1.3 kg |
| Cage options | ML |
| D1 | 83.8mm |
| F, E | 58.5mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.5mm |
| s | 3.2mm |
| da min | 54mm |
| da max | 56mm |
| db min | 61mm |
| Da max | 91mm |
| ra max | 1.5mm |
| rb max | 1.5mm |
| kr | 0.25 |
