SKU: NU324ECM/C3VL0241-SKF

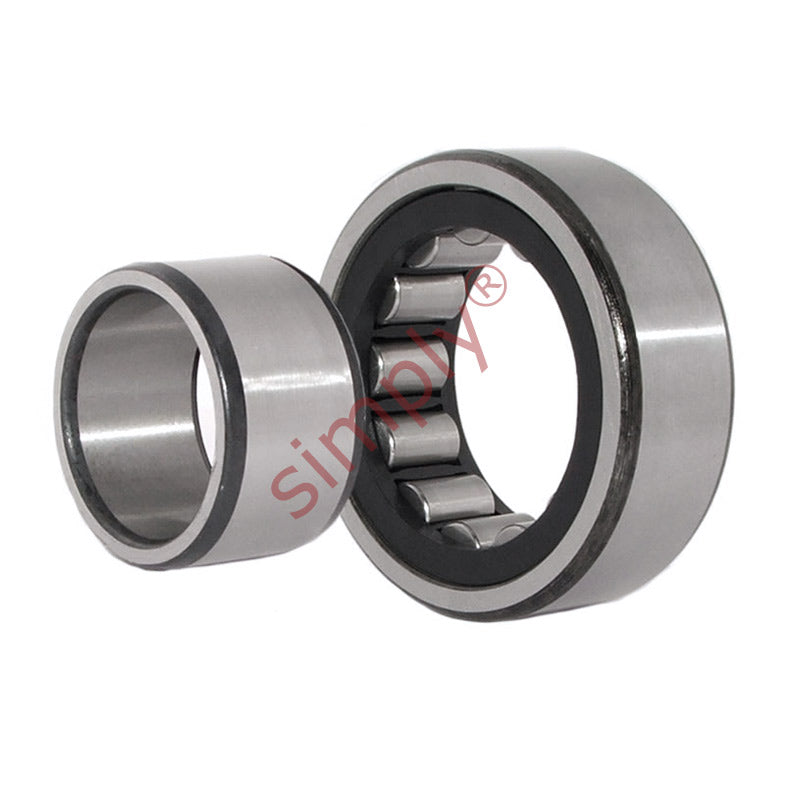

SKF NU324ECMC3VL0241 Insocoat Cylindrical Roller Bearing 120x260x55mm
SKF NU324ECMC3VL0241 Insocoat Cylindrical Roller Bearing 120x260x55mm
Regular price
$2,877.20
ex VAT
Regular price
Sale price
$2,877.20
ex VAT
In stock
Price Break
10+
$2,560.71
19+
$2,416.85
29+
$2,388.08
39+
$2,359.30
49+
$2,330.53
74+
$2,301.76
99+
$2,157.90
199+
$2,129.13
249+
$2,100.36
499+
$2,071.58
999+
$2,014.04
Description
Description
|
SKF Insocoat Bearings: Special application bearings that are electrically insulated and capable of withstanding voltages up to 1000v, a layer of aluminium oxide (100µm thickness) Benefits: Electrically insulated |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 260mm
- Width:
- 55mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 120mm |
|---|---|
| D | 260mm |
| B | 55mm |
| Dynamic load C | 610 kN |
| Static load Co | 620 kN |
| Fatigue load limit Pu | 69.5 kN |
| Reference speed | 2800 rpm |
| Limiting speed | 3200 rpm |
| Weight | 15.2 kg |
| D1 | 219mm |
| F | 154mm |
| r1r2 min | 3mm |
| r1r4 min | 3mm |
| s | 3.7mm |
| da min | 134mm |
| da max | 150mm |
| db min | 157mm |
| Da min | 225mm |
| Da max | 246mm |
| ra max | 2.5mm |
| rb max | 2.5mm |
| kr | 0.15 |
