SKU: PBM121816M1-EU

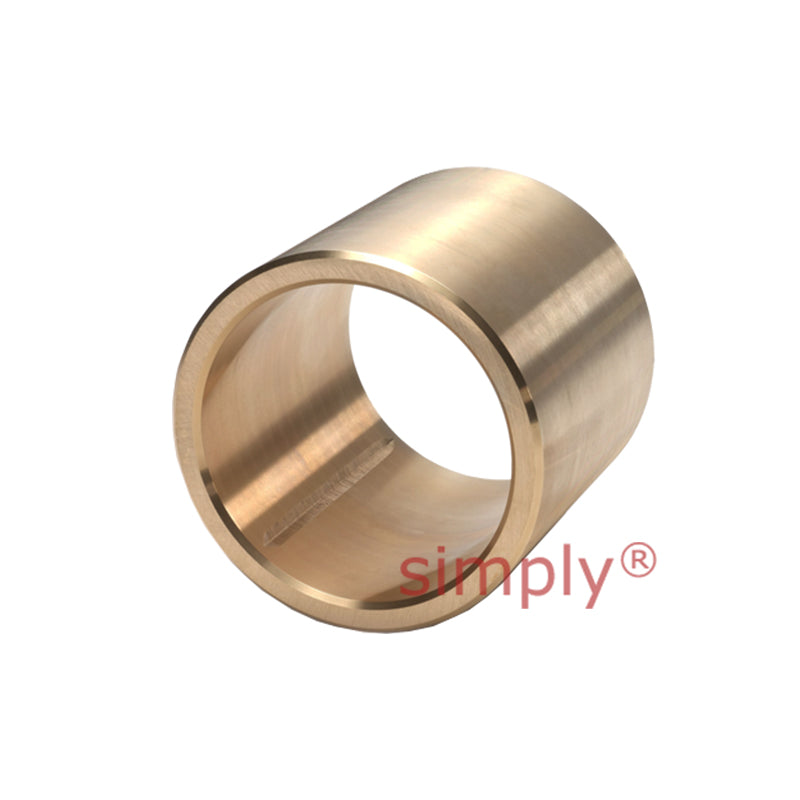

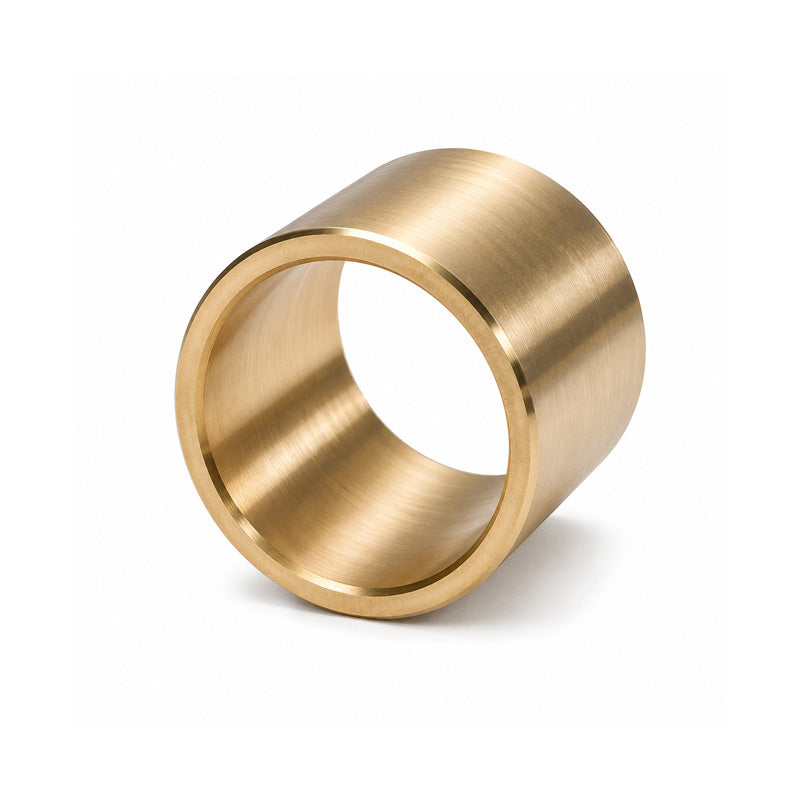

PBM121816M1 Premier Budget Metric Plain Solid Bronze Bush 12x18x16mm
Equivalent to: TBP 012/018 X 016
Low stock
Price Break
Description
Premier Budget PBM/PBMF Bronze Bushing: No other cylindrical bushing is used in as many and as varied applications as solid bronze bushings. The solid bronze material is ideally suited for highly demanding applications in tough environments. We offer a standard assortment of both plain and flanged cylindrical bushings in accordance with ISO 4379 and DIN1850. These solid bronze bushings are intended for oscillating movements in both rotational and axial directions. Solid Bronze bushings are not intended for rotating movements at medium or high speeds.
Uses of Application Construction machinery, Transport equipment, Pulp and papermaking machinery, off-shore equipment
Equivalent: TBP 012/018 X 016
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 18mm
- Length:
- 16mm
Technical
| d | 12mm |
|---|---|
| D | 18mm |
| B | 16mm |
| Tolerance shaft | e7 |
| Tolerance housing | H7 |
| Specific Dynamic Load Factor ( K ) | 25 N/mm 2 |
| Specific Static Load Factor ( K0 ) | 45 N/mm 2 |
| Permissable Sliding Velocity ( v ) | min. 0 m/s |
| Permissable Sliding Velocity ( v ) | max. 0.5 m/s |
| Coefficient of Friction ( y ) | min. 0.08 |
| Coefficient of Friction ( y ) | max. 0.15 |
| Weight | 0.015kg |
