SKU: PBY20-XL-INA

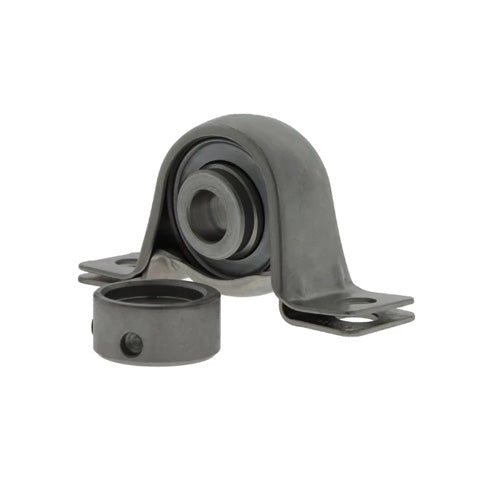

INA PBY20XL Sheet Steel Plummer Block Housing with Grub Screw Insert 20mm Bore
INA PBY20XL Sheet Steel Plummer Block Housing with Grub Screw Insert 20mm Bore
Regular price
$33.11
ex VAT
Regular price
Sale price
$33.11
ex VAT
In stock
Price Break
10+
$29.47
19+
$27.81
29+
$27.48
39+
$27.15
49+
$26.82
74+
$26.49
99+
$24.83
199+
$24.50
249+
$24.17
499+
$23.84
999+
$23.18
Description
Description
|
INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. This sheet steel housing is a two-piece unit with a moderate load carrying capacity and is Corrotect® coated which offers good protection against corrosion. This plummer block housing has a long base and is screw mounted to the adjacent construction by means of slots. The housings are screw mounted on the adjacent construction. Benefits: Suitable for a lightweight construction, housing is corrosion-resistant, grub screw fixing. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 20mm
- Style:
- PBY
- Bolt Hole Centres:
- 76mm

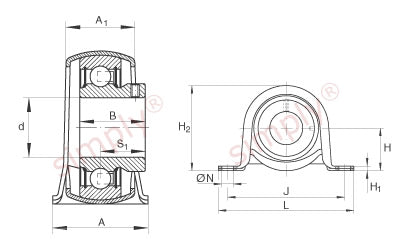

Technical
Technical
| d | 20mm |
|---|---|
| L | 98.4mm |
| H2 | 50.1mm |
| A | 31.8mm |
| A1 | 22.3mm |
| B | 25mm |
| H | 25.4mm |
| H1 | 3.3mm |
| J | 76mm |
| N | 9.5mm |
| S1 | 18mm |
| Mass | 0.22 kg |
| Load carrying capacity of housing Cor G | 1600 N |
| Basic dynamic load rating Cr | 13600 N |
| Basic static load rating Cor | 6600 N |
| Designation of housing | GEH47-BT? |
| Designation of bearing | AY20-XL-NPP-B? |
