SKU: PHS20EC-IKO

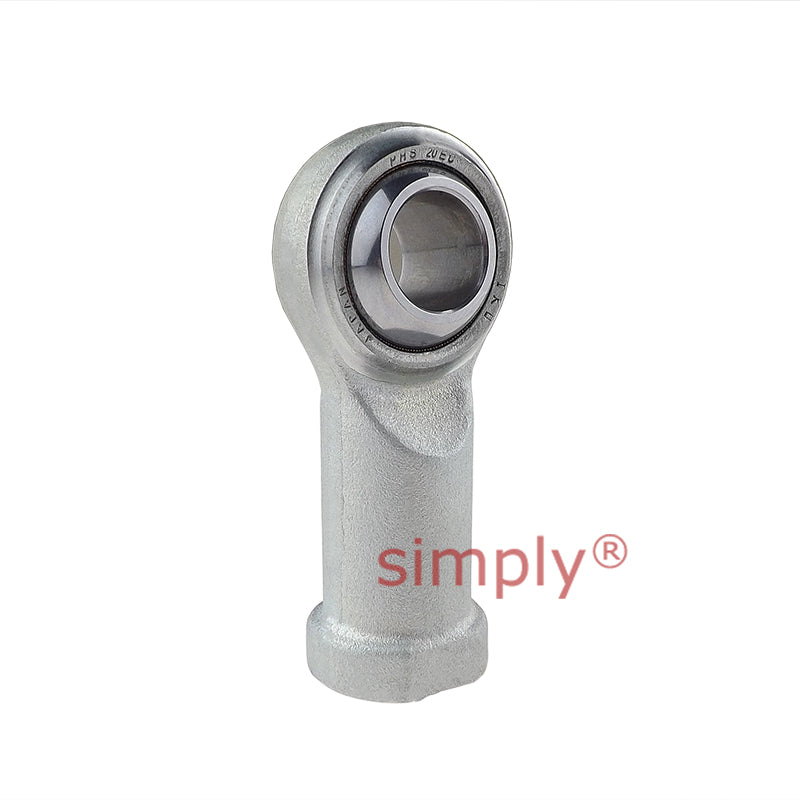

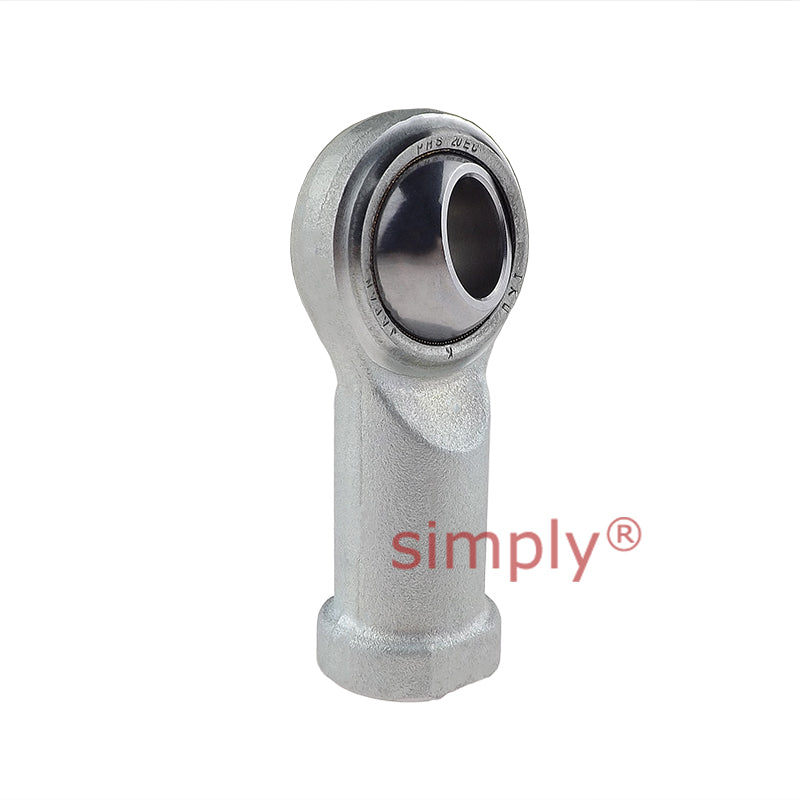

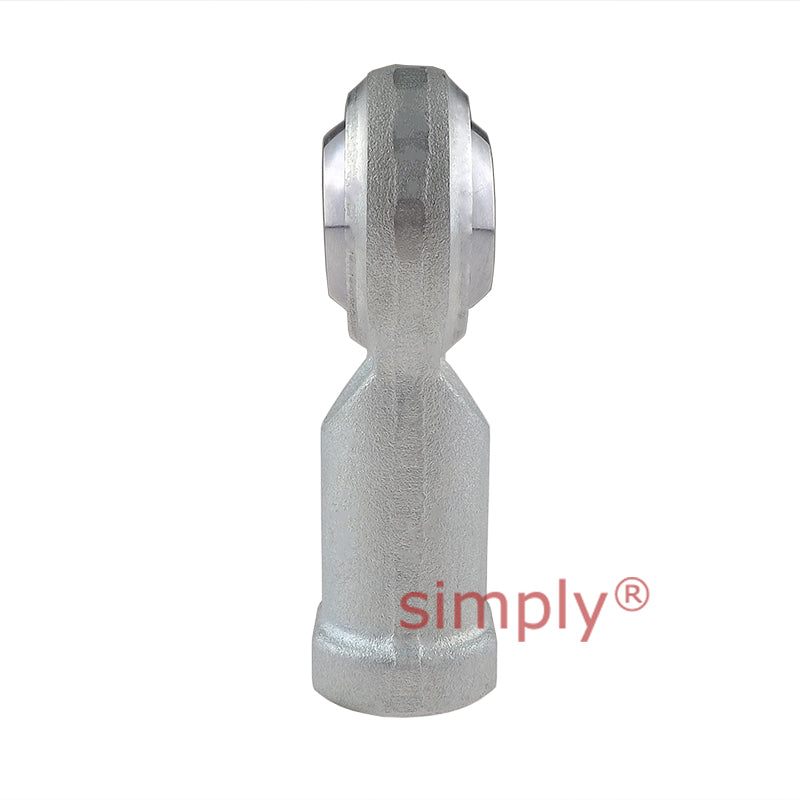

IKO PHS20EC Right Hand Steel / PTFE Lined Maintenance Free Plain Female Rod End M20x1.5 Thread
In stock
Price Break
Description
Maintenance-free PILLOBALL Rod Ends: PILLOBALLs are compact self-aligning spherical bushings that can support a large radial load and a bi-directional axial load at the same time. The rod ends have either a female thread in the body or a male thread on the body, and they can be easily assembled onto machines. This maintenance free type has superior anti-corrosion properties as the body is zinc chromate treated and the spherical inner ring is chromium plated on the sphere surface after heat treatment and grinding. A special PTFE liner, reinforced with copper alloy meshes, which is superior in anti-wear properties with little creep deformation is used for lining on the sliding surface of the body.
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 46mm
- Width:
- 100mm
- Material:
- PTFE Lined

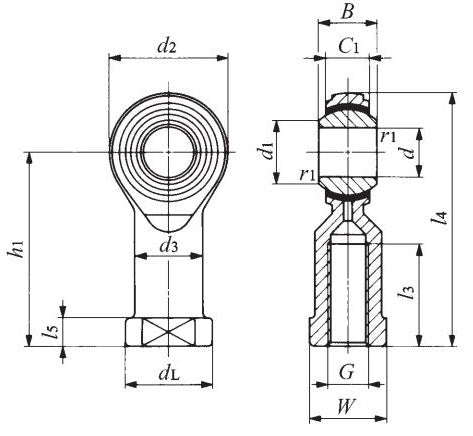

Technical
| d | 20mm |
|---|---|
| Thread (G) | M20X1.5 |
| d2 | 46mm |
| C1 | 18mm |
| B | 25mm |
| d1 | 24.4mm |
| l4 | 100mm |
| h1 | 77mm |
| l3 | 40mm |
| l5 | 10m |
| W | 30mm |
| d3 | 27.5mm |
| dL | 34mm |
| rls min | 0.2mm |
| Ball Dia. | 34.925mm (1-3/8) |
| Dynamic Load Capacity (N) | 61600 N |
| Static Load Capacity (N) | 30000 N |
| Weight | 380g |
