SKU: PHS28.EU

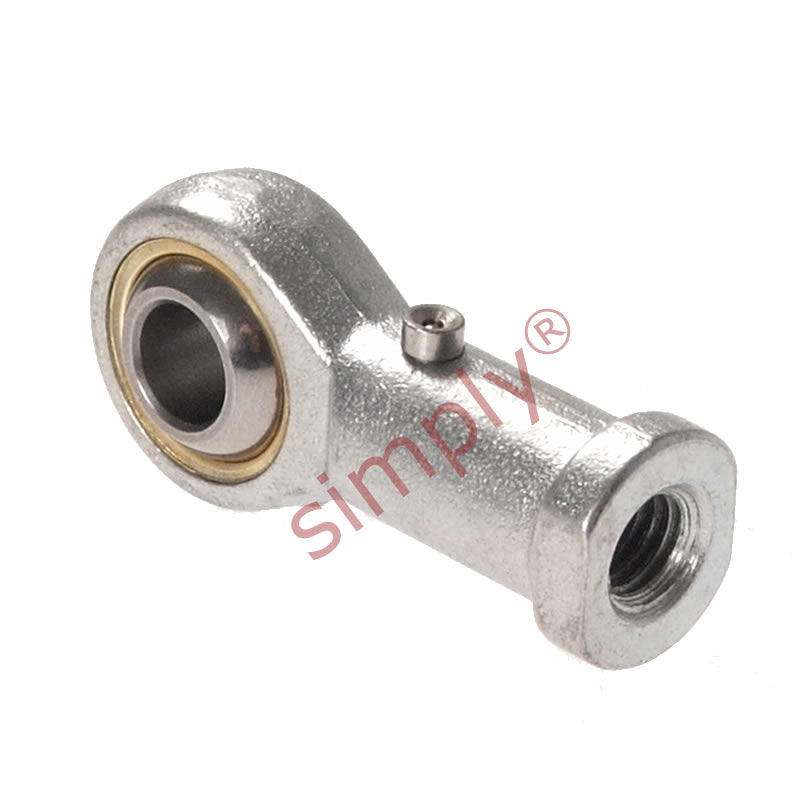

Budget PHS28 Right Hand Steel / Bronze Lined Plain Female Rod End 28mm Bore M27x2 Thread
Budget PHS28 Right Hand Steel / Bronze Lined Plain Female Rod End 28mm Bore M27x2 Thread
Regular price
$20.37
ex VAT
Regular price
Sale price
$20.37
ex VAT
In stock
Price Break
10+
$18.13
19+
$17.11
29+
$16.91
39+
$16.70
49+
$16.50
74+
$16.30
99+
$15.28
199+
$15.07
249+
$14.87
499+
$14.67
999+
$14.26
Description
Description
|
Female Rod End with Phosphor Bronze Race: Right hand thread female rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M27x2
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 28mm
- Material:
- Bronze Lined
Technical
Technical
| d | 28mm |
|---|---|
| B | 35mm |
| r1 | 0.6mm |
| C1 | 25mm |
| d1 max | 32.29mm |
| d2 | 66mm |
| d3 | M27x2 |
| h1 | 103mm |
| L3 | 53mm |
| L4 | 136mm |
| L5 | 12mm |
| d4 | 37mm |
| d5 | 46mm |
| S | 41mm |
| Ball diameter | 1-7/8 inch |
| Dynamic load Cr | 59.5 kN |
| Static load Cor | 88.7 kN |
| Max angle α | 15 |
| Weight | 0.95 kg |
