SKU: PHS30.EU

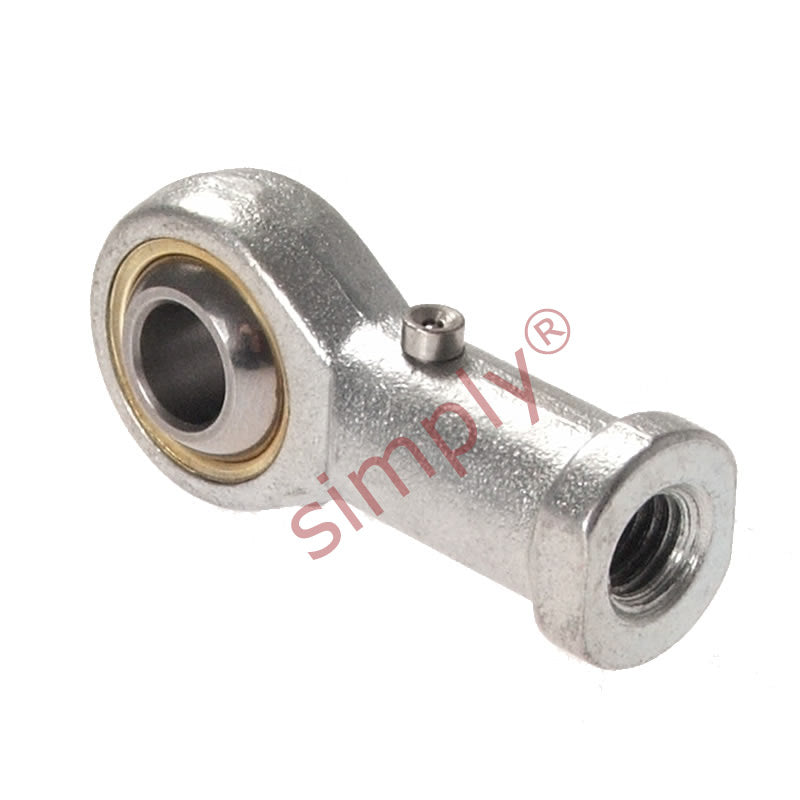

Budget PHS30 Right Hand Steel / Bronze Lined Plain Female Rod End 30mm Bore M30x2 Thread
Budget PHS30 Right Hand Steel / Bronze Lined Plain Female Rod End 30mm Bore M30x2 Thread
Regular price
$42.26
ex VAT
Regular price
Sale price
$42.26
ex VAT
Equivalent to: GIKFR30PB SIKAC30M SF30 FB-M30
In stock
Price Break
10+
$37.61
19+
$35.50
29+
$35.08
39+
$34.65
49+
$34.23
74+
$33.81
99+
$31.70
199+
$31.27
249+
$30.85
499+
$30.43
999+
$29.58
Description
Description
|
Female Rod End with Phosphor Bronze Race: Right hand thread female rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
Equivalent: GIKFR30PB SIKAC30M SF30 FB-M30
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M30x2
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 30mm
- Material:
- Bronze Lined
Technical
Technical
| d | 30mm |
|---|---|
| B | 37mm |
| r1 | 0.6mm |
| C1 | 25mm |
| d1 max | 34.8mm |
| d2 | 70mm |
| d3 | M30x2 |
| h1 | 110mm |
| L3 | 56mm |
| L4 | 145mm |
| L5 | 15mm |
| d4 | 40mm |
| d5 | 50mm |
| S | 41mm |
| Ball diameter | 2 inch |
| Dynamic load Cr | 63.5 kN |
| Static load Cor | 94 kN |
| Max angle α | 17 |
| Weight | 1.13 kg |
