SKU: PNA17/35-MB

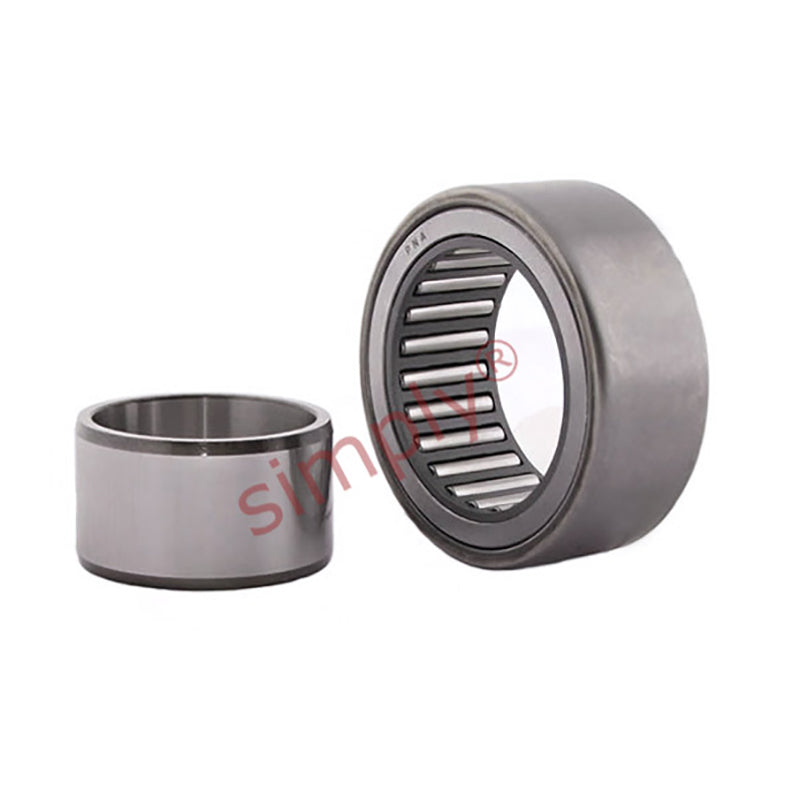

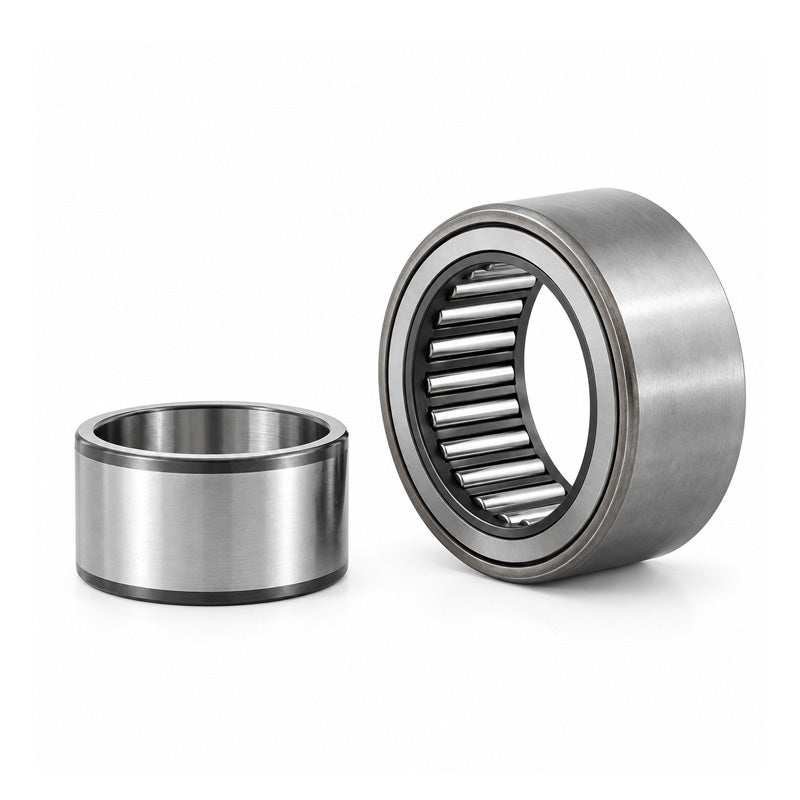

Major Brand PNA17/35 Needle Roller Bearing Alignment Type With Shaft Sleeve 17x35x16
Major Brand PNA17/35 Needle Roller Bearing Alignment Type With Shaft Sleeve 17x35x16
Regular price
$68.68
ex VAT
Regular price
Sale price
$68.68
ex VAT
In stock
Price Break
10+
$61.13
19+
$57.69
29+
$57.00
39+
$56.32
49+
$55.63
74+
$54.94
99+
$51.51
199+
$50.82
249+
$50.14
499+
$49.45
999+
$48.08
Description
Description
|
Alignment Needle Roller with Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment. Benefits: Supplied with the inner ring, tolerates misalignment |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 35mm
- Width:
- 16mm
Technical
Technical
| d | 17mm |
|---|---|
| D | 35mm |
| B | 16mm |
| Dynamic load | 13200 N |
| Static load | 19300 N |
| Fatigue load limit Pu | 2280 N |
| Speed in grease | 13000 rpm |
| Speed in oil | 19000 rpm |
| F | 20mm |
| D1 | 30.5mm |
| r min | 1mm |
| r1r2 min | 0.3mm |
| s (axial disp) | 0.5mm |
| da min | 19mm |
| Da min | 29.5 |
