SKU: POS18.EU

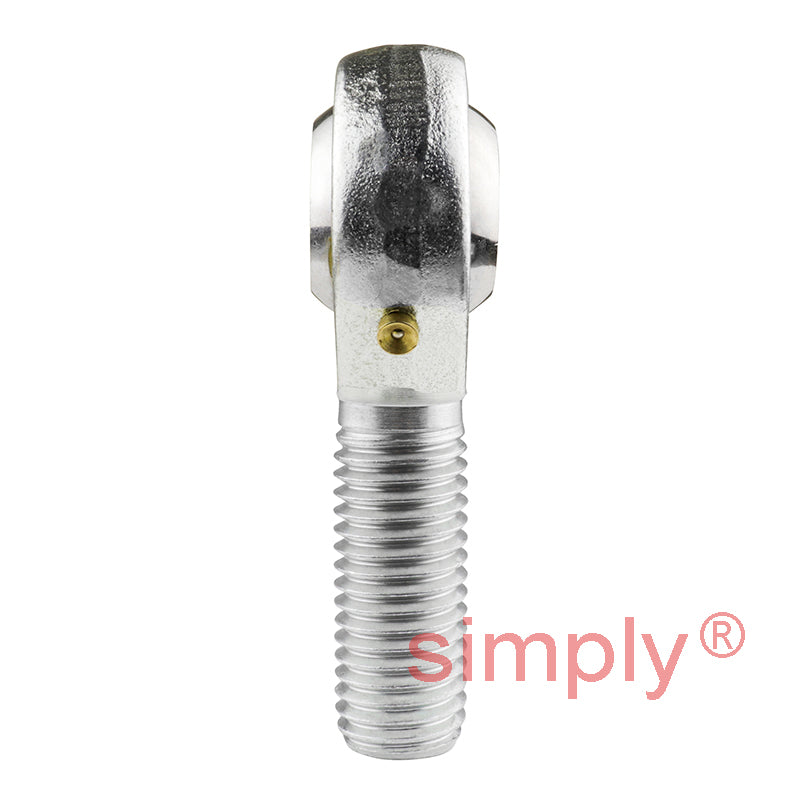

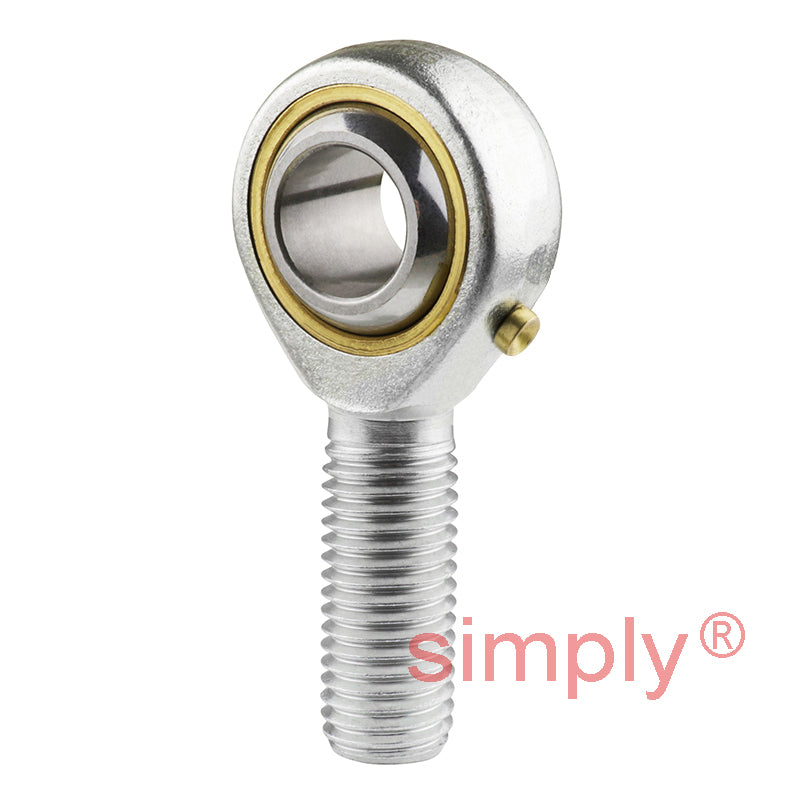

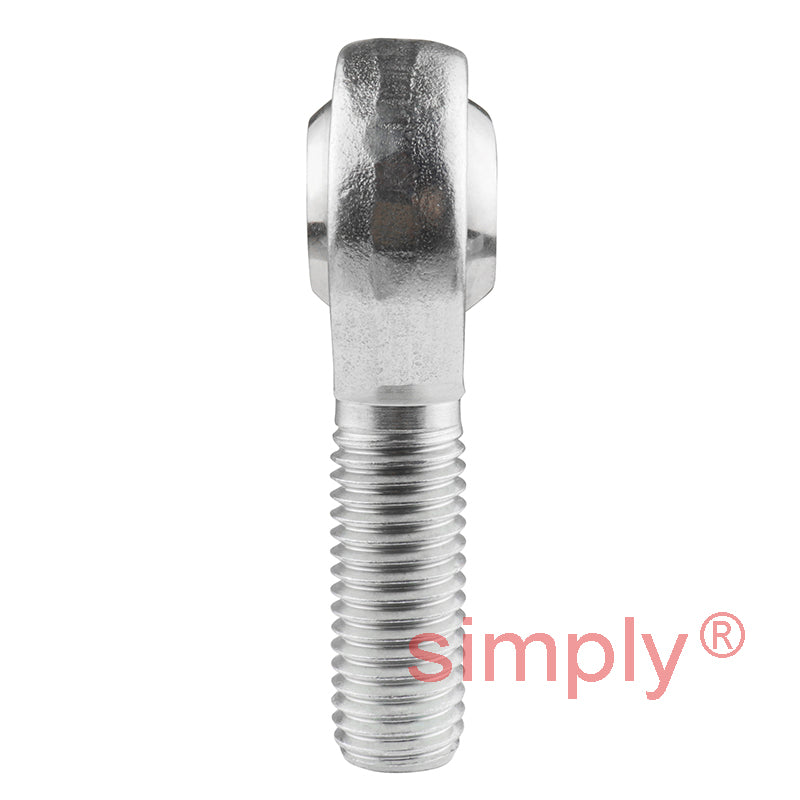

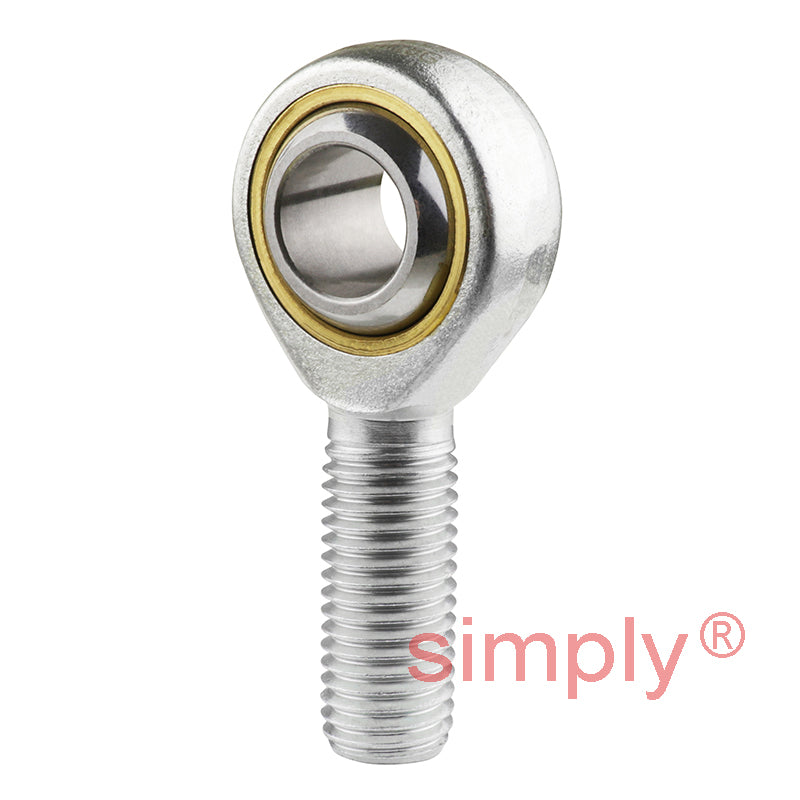

Budget POS18 Right Hand Steel / Bronze Lined Plain Male Rod End 18mm Bore M18x2.5 Thread
Budget POS18 Right Hand Steel / Bronze Lined Plain Male Rod End 18mm Bore M18x2.5 Thread
Regular price
$17.85
ex VAT
Regular price
Sale price
$17.85
ex VAT
Equivalent to: GAKFR18PB SAKAC18M SM18 MB-M17
In stock
Price Break
10+
$15.89
19+
$14.99
29+
$14.82
39+
$14.64
49+
$14.46
74+
$14.28
99+
$13.39
199+
$13.21
249+
$13.03
499+
$12.85
999+
$12.50
Description
Description
|
Male Rod End with Phosphor Bronze Race: Right hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
Equivalent: GAKFR18PB SAKAC18M SM18 MB-M17
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M18x2.5
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 18mm
- Material:
- Bronze Lined
Technical
Technical
| d | 18mm |
|---|---|
| B | 23mm |
| r1 | 0.6mm |
| C1 | 16.5mm |
| d1 max | 21.8mm |
| d2 | 42mm |
| d3 | M18x2.5 |
| h | 72mm |
| l1 | 44mm |
| l2 | 93mm |
| Ball diameter | 1-1/4 inch |
| Dynamic load Cr | 26.2 kN |
| Static load Cor | 30.8 kN |
| Max angle α | 15 |
| Weight | 0.26 kg |
