SKU: PSM455560A51-SKF

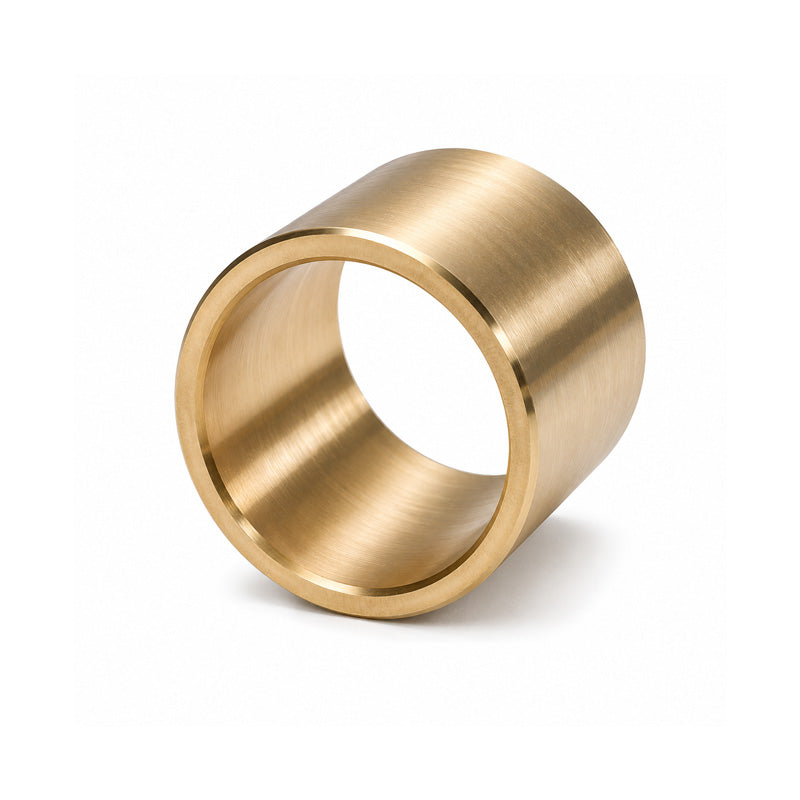

SKF PSM455560A51 Imperial Plain Sintered Bronze Bush 1.772x2.165x2.362 inch
SKF PSM455560A51 Imperial Plain Sintered Bronze Bush 1.772x2.165x2.362 inch
Regular price
$86.66
ex VAT
Regular price
Sale price
$86.66
ex VAT
In stock
Price Break
10+
$77.13
19+
$72.79
29+
$71.93
39+
$71.06
49+
$70.19
74+
$69.33
99+
$65.00
199+
$64.13
249+
$63.26
499+
$62.40
999+
$60.66
Description
Description
PSM/PSMF Bronze Bushing: SKF Sintered Bronze cylindrical bushings are all self-lubricating and maintenance-free. The sintered bronze bushings consist of a porous bronze matrix impregnated with lubricant. The permissible sliding velocity for sintered bronze bushings is very high, which makes the bushings suitable for rotating applications. SKF offers a full range of both plain and flanged cylindrical bushings. SKF Sintered Bronze bushings are most
suitable for applications with rotating movements and where the self-lubricating performance requirements are high.
Uses of Application electrical equipment, household equipment, printing machinery, machine tools
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm = 1.772 inch
- Outside Diameter:
- 55mm = 2.165 inch
- Length:
- 60mm = 2.362 inch
Technical
Technical
| d | 1.772 inch |
|---|---|
| D | 2.165 inch |
| B | 2.362 inch |
| Tolerance shaft | h8 |
| Tolerance housing | H7 |
| Specific Dynamic Load Factor ( K ) | 1450.377 psi |
| Specific Static Load Factor ( K0 ) | 2900.755 psi |
| Permissable Sliding Velocity ( v ) | min. 49.213 ft/min |
| Permissable Sliding Velocity ( v ) | max. 984.252 ft/min |
| Coefficient of Friction ( y ) | min. 0.05 |
| Coefficient of Friction ( y ) | max. 0.1 |
| Imperial Weight | 0.216 lbs |
