SKU: PWTR4090.2RS-EU

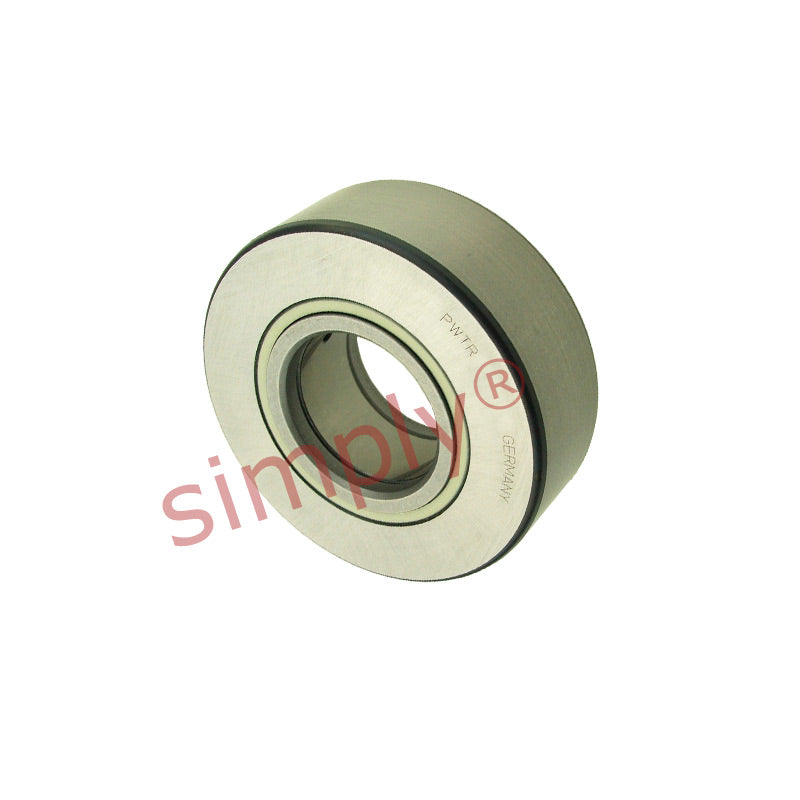

PWTR40902RS Budget Support Roller With Axial Guidance 40x90x32mm
In stock
Price Break
Description
Budget PWTR.2RS Axial Guidance Support Rollers: This type of support roller incorporates a guided 3 flange full complement needle roller and permits relatively high speed operation and very high loads. Suitable for arduous conditions, axial guidance is provided by loose flange rings via the full complements. PWTR.2RS series rollers incorporate 2 rubber seals one on each side which are inserted into the 2 loose outer steel rings which are pressed in place serving to hold the bearing together. The outer ring is particularly thick by design is intended to cope with heavy radial loads and also shock loads. Large space between the full complement rollers permits a large quantity of grease fill reducing the maintenance time. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 90mm
- Width:
- 30mm
- Seals / Shields:
- Rubber Seals
Technical
| D | 90mm |
|---|---|
| d | 40mm |
| C | 30mm |
| B | 32mm |
| d1 | 51mm |
| r min | 1.1mm |
| r1 min | 0.6mm |
| Speed rating | 1500 rpm |
| Basic dynamic load | 49500 N |
| Basic static load | 62000 N |
| Fatigue load limit Pu | 7650 N |
| Max radial dynamic force | 64000 N |
| Max radial static force | 91500 N |
| Weight | 1130 g |
