SKU: RA100-NPP-INA

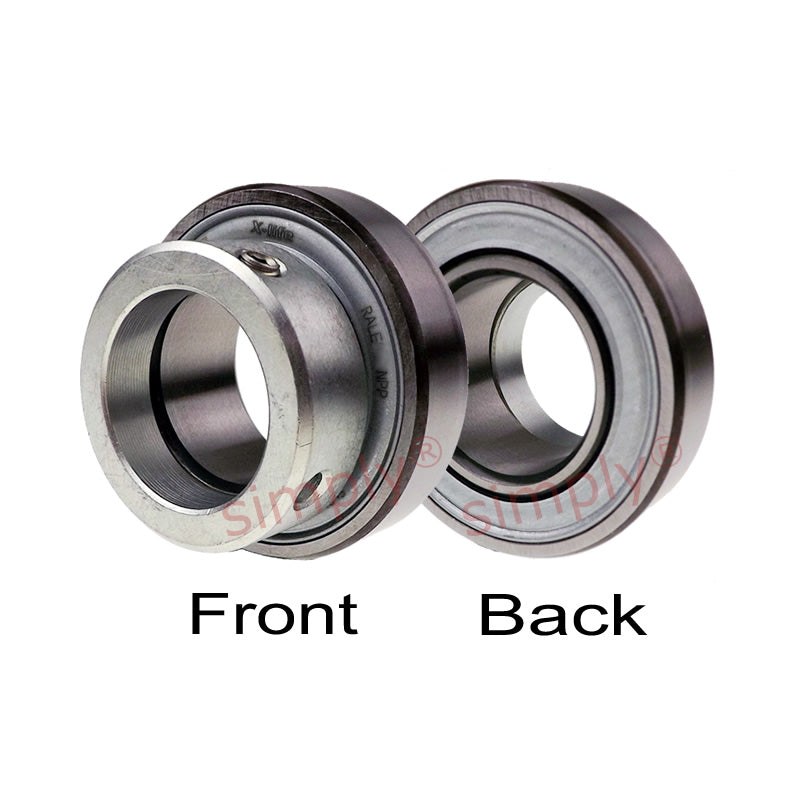

INA RA100NPPB Imperial Parallel Outer Bearing Insert with P Seals Eccentric Collar 25.4x52x31mm
INA RA100NPPB Imperial Parallel Outer Bearing Insert with P Seals Eccentric Collar 25.4x52x31mm
Regular price
$31.06
ex VAT
Regular price
Sale price
$31.06
ex VAT
In stock
Price Break
10+
$27.64
19+
$26.09
29+
$25.78
39+
$25.47
49+
$25.16
74+
$24.85
99+
$23.30
199+
$22.98
249+
$22.67
499+
$22.36
999+
$21.74
Description
Description
|
INA RA..-NPP Series Inserts: Bearing insert with parallel outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 52mm
- Width:
- 31mm
Technical
Technical
| d | 25.4mm |
|---|---|
| d | 1 inch |
| D | 52mm |
| B1 | 31mm |
| B | 21.4mm |
| C | 15mm |
| d2 | 30.5mm |
| d3 max | 37.5mm |
| S | 7.5mm |
| W | 1/8 inch |
| Dynamic load Cr | 14000 N |
| Static load C0r | 7800 N |
| Weight | 0.19 kg |
