SKU: RA107-NPP-INA

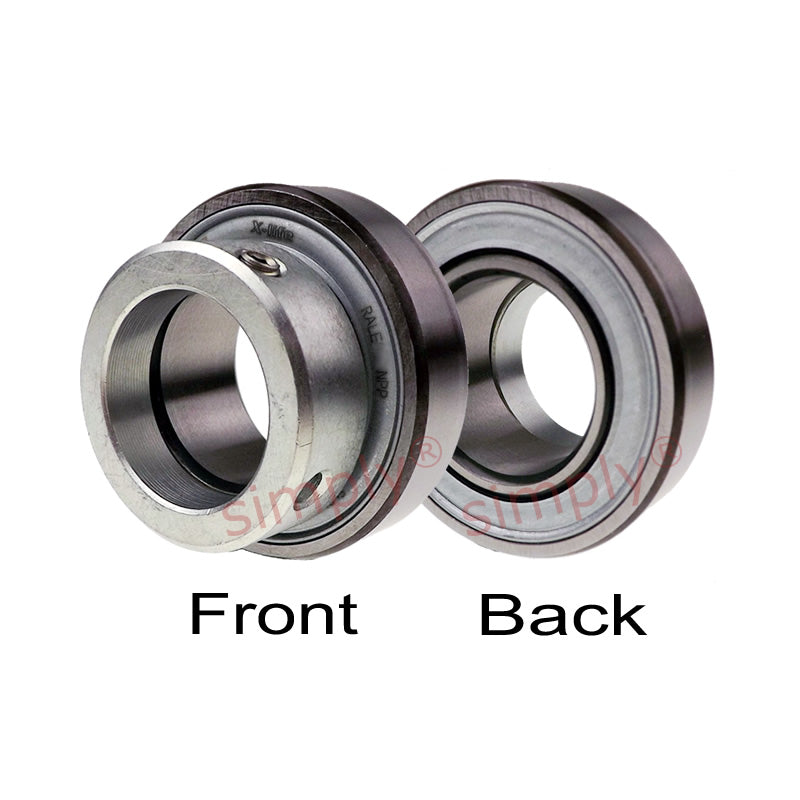

INA RA107NPP Imperial Parallel Outer Bearing Insert with P Seals Eccentric Collar 36.51x72x39mm
INA RA107NPP Imperial Parallel Outer Bearing Insert with P Seals Eccentric Collar 36.51x72x39mm
Regular price
$45.20
ex VAT
Regular price
Sale price
$45.20
ex VAT
In stock
Price Break
10+
$40.23
19+
$37.97
29+
$37.52
39+
$37.06
49+
$36.61
74+
$36.16
99+
$33.90
199+
$33.45
249+
$33.00
499+
$32.54
999+
$31.64
Description
Description
|
INA RA..-NPP Series Inserts: Bearing insert with parallel outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Outside Diameter:
- 72mm
- Width:
- 39mm
Technical
Technical
| d | 36.51mm |
|---|---|
| d | 1-7/16 inch |
| D | 72mm |
| B1 | 39mm |
| B | 25.4mm |
| C | 19mm |
| d2 | 44.6mm |
| d3 max | 51mm |
| S | 9.5mm |
| W | 3/16 inch |
| Dynamic load Cr | 25500 N |
| Static load C0r | 15300 N |
| Weight | 0.48 kg |
