SKU: RABRB30/72-FA106-INA

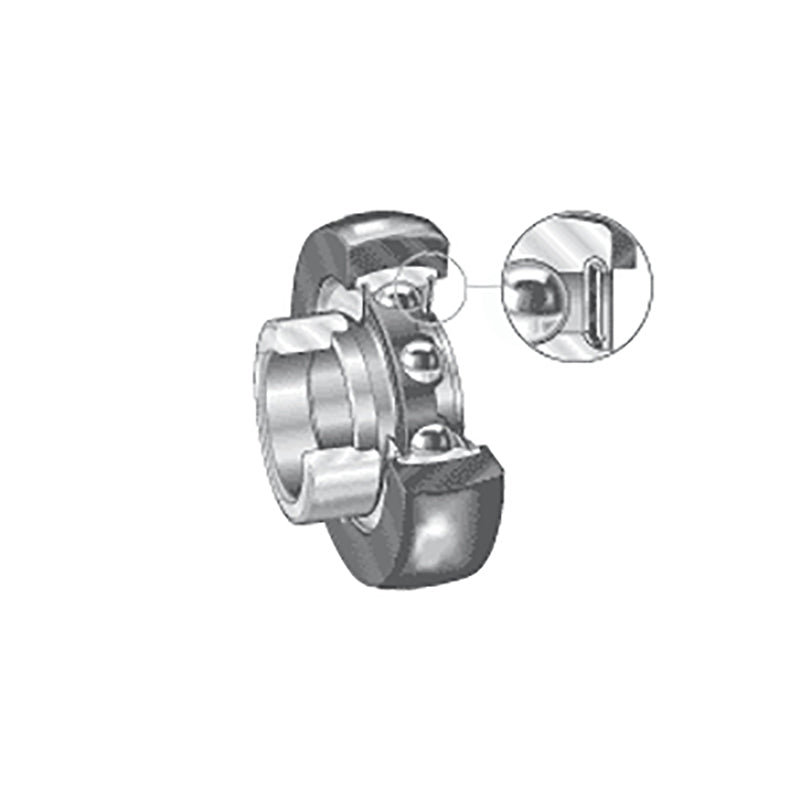

INA RABRB30/72XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 30x72.2x38.2mm
INA RABRB30/72XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 30x72.2x38.2mm
Regular price
$67.00
ex VAT
Regular price
Sale price
$67.00
ex VAT
In stock
Price Break
10+
$59.63
19+
$56.28
29+
$55.61
39+
$54.94
49+
$54.27
74+
$53.60
99+
$50.25
199+
$49.58
249+
$48.91
499+
$48.24
999+
$46.90
Description
Description
|
INA RABRA and RABRB Series Inserts: Bearing insert with rubber interliner, P seals and eccentric collar. The outer ring is encased in a thick-walled NBR interliner. The interliner absorbs vibrations and shocks and thus gives damping of running noises. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. These bearings cannot be lubricated. Operating temperature range: -20 deg C to +85 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 72.2mm
- Width:
- 38.2mm
Technical
Technical
| d | 30mm |
|---|---|
| D | 72.2mm |
| B2 | 38.2mm |
| B1 | 35.8mm |
| C | 23mm |
| D2 | 54mm |
| d3 max | 44mm |
| S1 | 26.7mm |
| Operating temperature | -20 deg C to +85 deg C |
| Rubber ring: hardness, Shore A | 70 deg |
| Rubber ring: load carrying capacity Cg | 1980 N |
| Dynamic load Cr | 19500 N |
| Static load C0r | 11300 N |
| Designation of rubber interliner | RABR62/72 |
| Designation of bearing | RAE30-NPP-B-FA106 |
| Weight | 0.38 kg |
